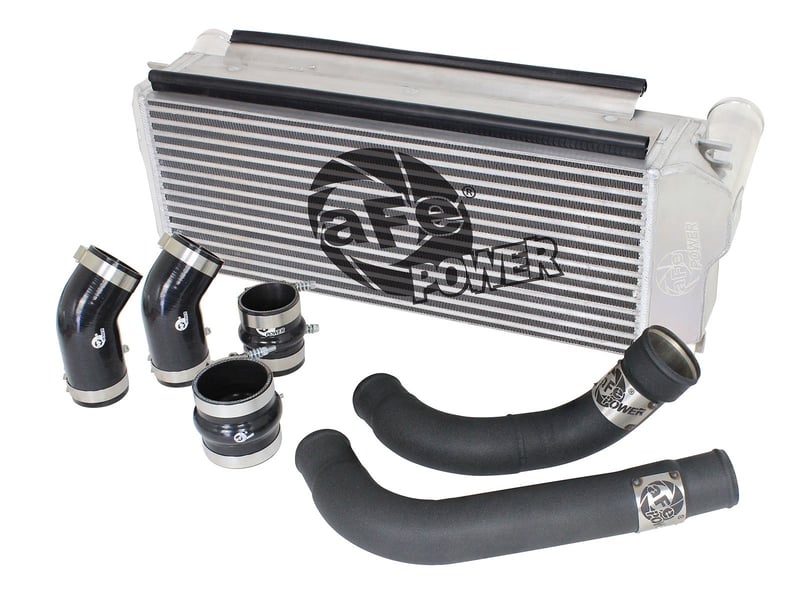

afe bladerunner gt series intercooler & tubes 13-18 dodge ram diesel trucks l6-6.7l (td) 46-20132-b
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
- Outflows the stock intercooler with tubes and increases heat dissipation
- End tanks constructed out of 3/16 Aluminum plate
- Incorporates Multi-directional vane (MDV) technology to direct hot airflow through the intercooler core
- 6" Bar and plate core design that is 20% larger than stock
- This intercooler is 100% TIG-Welded by certified craftsmen for strength and durability
- Intercooler is test pressure rated at 200psi
- 3" mandrel-bent stainless steel tubes
- Tubes are powder-coated wrinkle-black for heat resistance
- Coupling hose allows for expansion, movement and vibration between two hard pipes
- Includes high quality reinforced 5-Ply silicone couplings and stainless steel spring loaded T-bolt clamps for secure installation
- Uses factory mounting locations and includes hardware for a hassle-free installation
Confirm Vehicle Fitment
Product Overview
This BladeRunner GT Series Intercooler kit represents the next generation of intercoolers. The BladeRunner intercoolers utilize a 6" bar and plate core design that is 20% larger than stock. This kit outflows the OE intercooler system by 15%!
End Tanks:
The unique BladeRunner end tanks are constructed out of 3/16 aluminum plates and incorporate multi-directional vane technology.
Multi-Directional Vane Technology:
The BladeRunner MDV technology is used to direct hot air flow through the entire intercooler core, which allows for greater cooling than competitors units.
TIG-Welded:
100% TIG-Welded by certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks.
Pressure Tested:
The BladeRunner Intercooler is test pressure rated at 200psi.
Flow and Performance:
The intercooler tubes are constructed of 3" mandrel-bent stainless steel tubing for maximum flow then powder-coated wrinkle-black for heat and corrosion resistance. The smooth mandrel bends allow for low turbulence, while increasing horsepower and torque.
Laser-Cut Badging:
A unique aluminum laser-cut aFe POWER logo plate is welded-on for an aggressive style.
Installation Is A Snap:
Utilizes the factory mounting locations to provide stability for a hassle-free installation. Includes constant tension, spring loaded, T-bolt clamps for a leak-free seal and heavy-duty 5-Ply polyester reinforced silicone couplings for strength.
Emissions Disclaimer:
This system is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicle.
| Year | Make | Model | SubModel | Engine | Fuel |
| 2013-2018 | RAM | 2500 | Cummins | L6 6.7L (td) | Diesel |
| 2013-2018 | RAM | 3500 | Cummins | L6 6.7L (td) | Diesel |
Technical Specifications
| Brand | aFe Power |
|---|---|
| MPN | 46-20132-B |
