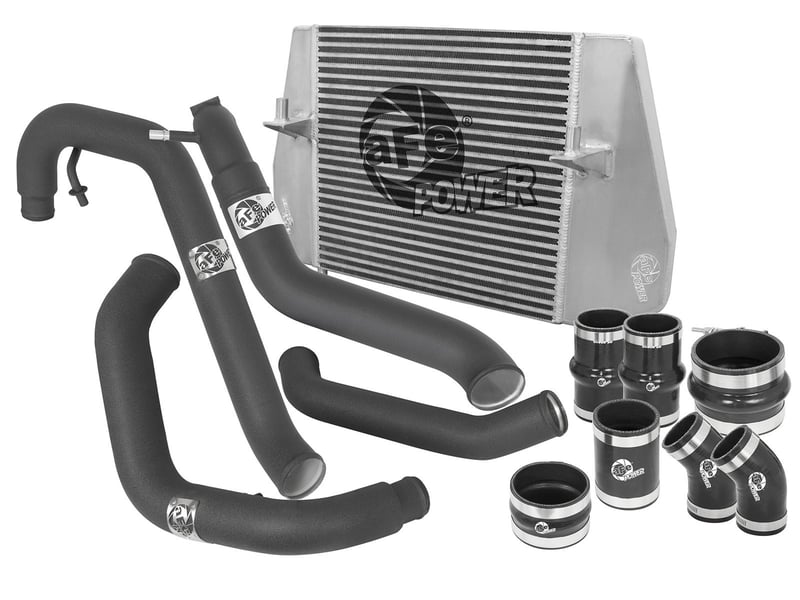

afe bladerunner intercooler w/ tubes 13-14 ford f-150 ecoboost trucks v6 3.5l 46-20162-b
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
- Dyno-Proven Gains up to +14HP & +16 Lbs. x Ft. TQ (Tested w/ aFe POWER Exhaust System)
- Outflows Stock Intercooler by 20%
- TIG-Welded Aluminum End Tanks for Superior Strength & Durability
- MDV Technology Directs Hot Airflow Through Intercooler Core
- Large Bar & Plate Core Design Allows for Greater Airlfow & Increased Heat Dissapation
- 2-1/2" Hot-Side and 3-1/2" to 3" Outlet Cold-Side Mandrel-bent Powder-Coated Aluminum & Stainless Steel Tubes
- Coupling Hose Allows for Expansion, Movement and Vibration Between Two Hard Pipes
- Includes Premium Clamps and 5-Ply Reinforced Silicone Couplings for Long Life, Perfect Fit & Strength
- Uses Factory Mounting Locations & Includes All Necessary Hardware for a Hassle-Free Installation
Confirm Vehicle Fitment
Estimated Delivery: 2 to 7 Days
Product Overview
This BladeRunner GT Series Intercooler kit represents the next generation of intercoolers. The BladeRunner intercoolers utilize a 3" bar and plate core design that is larger than stock. This kit outflows OE intercooler system by 20%.
End Tanks:
The unique BladeRunner end tanks are constructed out of 3/16'' TIG-Welded aluminum plates.
3" Bar and Plate Core Design:
The use of the bar and plate core design allows for greater airflow.
Billet Aluminum Inlet/Outlets:
This BladeRunner Intercooler uses dual 2-1/2" inlets and a 3" outlet for superior strength and durability.
TIG-Welded:
100% TIG-Welded by certified craftsmen for race proven strength and durability. TIG-Welding provides the strongest welds reducing stress cracks.
Mandrel-Bent Tubes:
aFe POWER's 2013-2014 F-150 EcoBoost intercooler tubes are constructed of 2-1/2" hot-side and 3-1/2"-3" cold-side mandrel-bent, powder-coated stainless steel and aluminum tubing for maximum flow. Constant diameter, smooth transition bends decrease turbulence and minimize pressure loss, increasing horsepower, torque and lowering EGT's.
Condensation Drain:
The intercooler includes a 1/8" NPT brass breather vent, which drains condensation from the intercooler. The port can also be plugged using the included 1/8" NPT plug.
aFe POWER Badging:
A unique stainless steel laser-cut aFe POWER logo plate is welded-on for an aggressive style.
Installation Is A Snap:
Utilizes the factory mounting locations to provide stability for a hassle-free installation. Lines up directly to factory mounting locations and comes complete with hi-temp 5-ply reinforced silicone couplings, hoses and clamps used to securely mount the tube.
Note: This system is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
The BladeRunner Intercooler is pressure test rated at 200psi which is perfect for high boost applications.
| Year | Make | Model | SubModel | Engine | Fuel |
| 2011-2014 | Ford | F-150 | EcoBoost | V6 3.5L (tt) | Gas |
Technical Specifications
| Brand | aFe Power |
|---|---|
| MPN | 46-20162-B |
