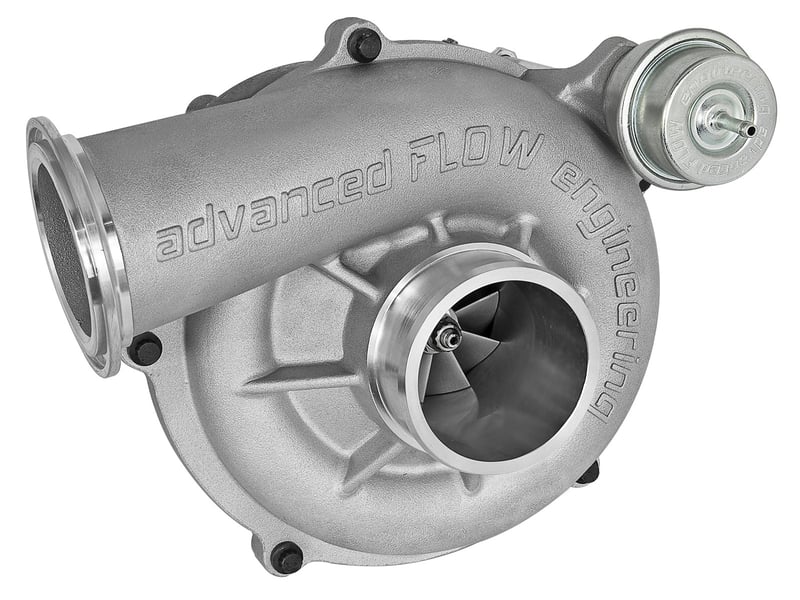

afe power bladerunner turbocharger 88mm 99.5-03 ford diesel trucks v8 7.3l (td) 46-60070
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
- Stock Replacement with no core charge
- A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
- Additional fueling is not required
- Wastegate actuator is included and comes preset
- In house testing produced a max gain of +13 horsepower and +28 lbs. x ft. of torque, verified by our in house dyno
- 2-Year Warranty
Confirm Vehicle Fitment
Estimated Delivery: 2 to 7 Days
Product Overview
Specifications:
Compressor Inducer - 60 mm
Compressor Exducer - 80 mm/ Trim 56
Turbine Inducer - 77 mm
Turbine Exducer - 67.5 mm/ Trim 77
Exhaust A/R - 0.84
Direct Replacement:
This turbo is a direct, bolt-on replacement unit that installs with ease. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Additional fueling is not required for improved performance over OE, but maximum gains are achieved from fuel system upgrades, either electronic or mechanical. An optional high-flow turbine outlet also helps lower exhaust gas temperatures.
Compressor:
A356 aluminum housing utilizes OE inlet and v-band outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset but is adjustable.
Note: This device is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
| Year | Make | Model | SubModel | Engine | Fuel |
| 2000-2003 | Ford | Excursion | Power-Stroke | V8 7.3L (td) | Diesel |
| 1999-2003 | Ford | F-250 Super Duty | Power-Stroke | V8 7.3L (td) | Diesel |
| 1999-2003 | Ford | F-350 Super Duty | Power-Stroke | V8 7.3L (td) | Diesel |
| 1999-2003 | Ford | F-450 Super Duty | Power-Stroke | V8 7.3L (td) | Diesel |
| 1999-2003 | Ford | F-550 Super Duty | Power-Stroke | V8 7.3L (td) | Diesel |
Technical Specifications
| Brand | aFe Power |
|---|---|
| MPN | 46-60070 |
