awe tuning 09-16 audi b8 a4 touring edition exhaust - single side diamond black tips 3015-23010

AWE Tuning 09-16 Audi B8 A4 Touring Edition Exhaust - Single Side Diamond Black Tips

Compatible with the Sedan and Avant, the AWE A4 Touring Edition Exhaust and Downpipe rise to the occasion of unlocking performance. Our Audi A4 2.0T exhausts have earned praise from owners and the press alike, due to their unique "Jekyll and Hyde" personality. A4 Research and Development has yielded an exhaust that is remarkably civil while idling / part throttle cruising, but unleashed at full throttle it produces what some have called a "war-cry wail."

Highlights:

• Featuring AWE 180 Technology™
• Crafted from mandrel bent T-304 Stainless Steel
• Dyno proven gains of +8-9 Horsepower and +6-7 lb ft of Torque at the crank
• Available with Chrome Silver or Diamond Black Tips
• Engineered, developed and tested in-house
• Lifetime Exhaust Warranty

Making good better

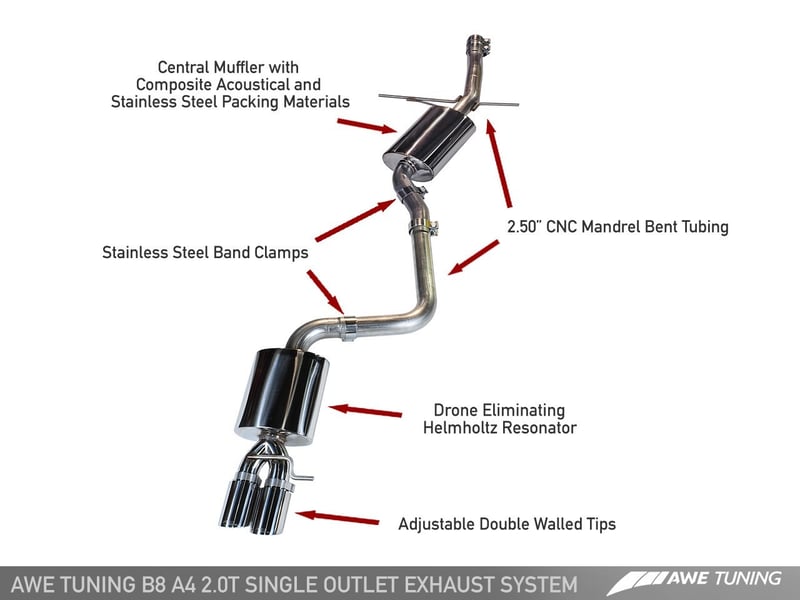

The stock A4 exhaust system has crimped tubing that obstructs exhaust flow, and robs horsepower. We fixed that. The AWE A4 Touring Edition Exhaust and Downpipe was designed using CAD modeling software to produce smooth gradual bends, eliminating flow interference. These improvements to the exhaust path result in gains of 8-9 horsepower and 6-7 lb ft of torque at the crank.

Sound Perfection: AWE 180 Technology™

As exhaust gases exit the 2.0L Turbo engine and flow into an AWE 180 Technology™ equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers.  The specific timing of when the reflected sound waves re-join the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. More on AWE 180 Technology™ in the tab above.

Additional sound level tuning

For the enthusiast interested in a more aggressive sound, we offer our downpipe. The factory unit contains a fairly large straight-through resonator. By replacing this large piece with a more compact but still straight-through resonator, we were able to increase sound volume while adding a slightly deeper tone. Testing showed no power increase in adding the downpipe. It will mate to our exhaust system or any other exhaust designed to work with the stock downpipe.
