fox 04-15 nissan titan 2.0 performance series 4.325in. ifp coilover shock (aluminum) / 0-2in. lift 983-02-053

Product gallery

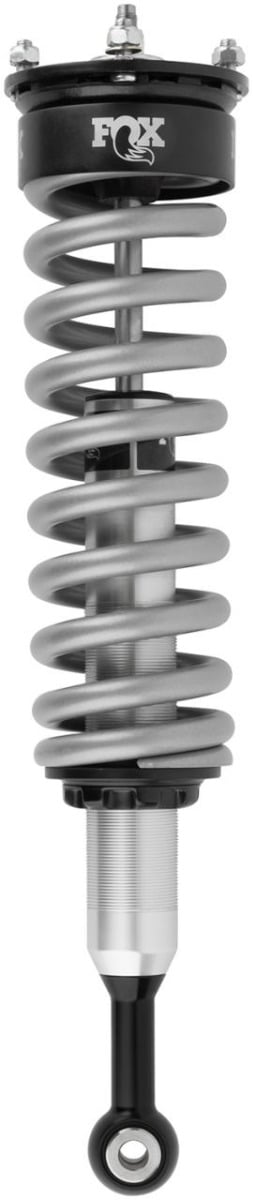

fox 04-15 nissan titan 2.0 performance series 4.325in. ifp coilover shock (aluminum) / 0-2in. lift 983-02-053

All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Select a vehicle to confirm fitment

Confirm Vehicle Fitment

$629.95/ ea
16 Available

Estimated Delivery: 2 to 7 Days

Fitment Guarantee
Warranty

Product Overview

Fox 04-15 Nissan Titan 2.0 Performance Series 4.325in. IFP Coilover Shock (Aluminum) / 0-2in. Lift



Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing Large diameter, heavy-duty spherical
Adjustments Ride height preload ring
Extended 15.790
Compressed 11.500
Travel 4.290
Top Mount OEM
Bottom Mount Eyelet

Instructions

Diagram

Technical Specifications

Technical specifications for this product
BrandFox Suspension
MPN983-02-053
