fox 14-21 dodge 1500 diesel 4wd 2.0 performance series 5.4in. ifp coilover shock (alum) / 0-2in. lift 985-02-020

Product gallery

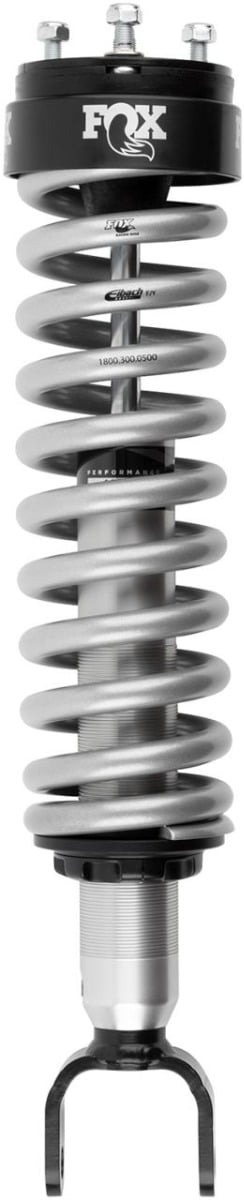

fox 14-21 dodge 1500 diesel 4wd 2.0 performance series 5.4in. ifp coilover shock (alum) / 0-2in. lift 985-02-020

All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Select a vehicle to confirm fitment

Confirm Vehicle Fitment

$629.95/ ea
13 Available

Estimated Delivery: 2 to 7 Days

Fitment Guarantee
Warranty

Product Overview

Fox 14+ Dodge 1500 Diesel 4WD 2.0 Performance Series 5.4in. IFP Coilover Shock (Alum) / 0-2in. Lift



Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing Large diameter, heavy-duty spherical
Adjustments Ride height preload ring
Extended 20.460
Compressed 15.060
Travel 5.390
Top Mount OEM
Bottom Mount Eyelet
Fitment notes Without Air Ride [Diesel]

Instructions

Diagram

Technical Specifications

Technical specifications for this product
BrandFox Suspension
MPN985-02-020
