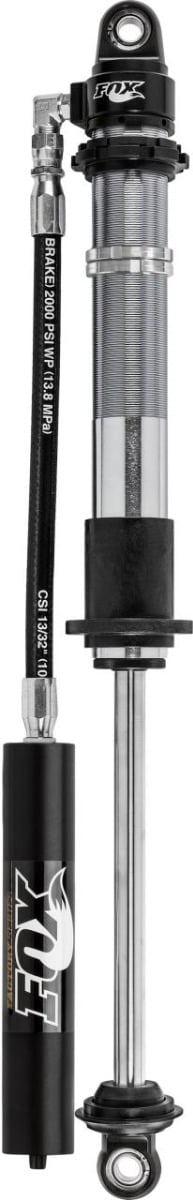

fox 2.0 factory series 18in. rotating r/r coilover 7/8in. shaft (custom valv.) w/-10 heims - blk 983-02-078-1
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.
Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.
Confirm Vehicle Fitment
Product Overview
Fox 2.0 Factory Series 18in. Rotating R/R Coilover 7/8in. Shaft (Custom Valv.) w/-10 Heims - Blk
| Body | Smooth bore and honed seamless steel |
|---|---|
| Body Plating | Zinc plated for a long-lasting finish |
| Components | Black anodized, CNC machined 6061-T6 billet aluminum |
| Piston | 7075 hard-anodized high-flow aluminum piston* |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seals | High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal* |
| Shafts | 17-4 H900 hard chrome plated stainless steel |
| Bearing | Spherical, PFTE-lined, heat-treated alloy steel |
| Options | Custom compression and rebound valving |
| Adjustments | RRB (Rotating Reservoir Bridge) |
| Spring preload ring | |
| Dual stage crossover ring | |
| Extended | 44.120 |
| Compressed | 26.180 |
| Travel | 17.940 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Rotating Remote |
| Reservoir Size | 2.0 x 11.0 |
| Hose | -8 x 17.75 |
| Mounting | |
| Valving | 50/70 |
Technical Specifications
| Brand | Fox Suspension |
|---|---|
| MPN | 983-02-078-1 |
