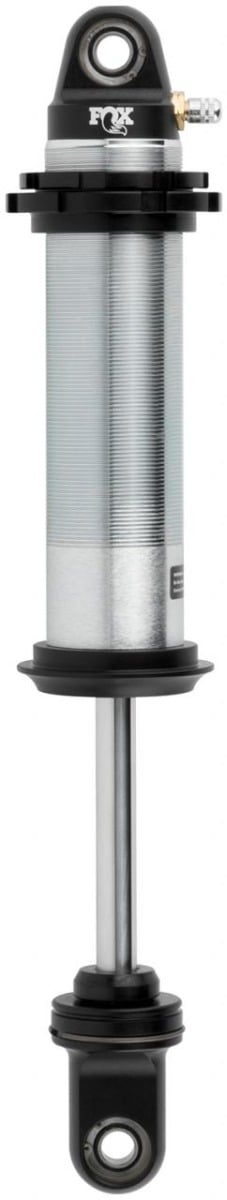

fox 2.0 factory series 5in. emulsion coilover shock 5/8in. shaft (normal valving) 40/60 - black/zinc 980-02-000
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.
Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.
Confirm Vehicle Fitment
Estimated Delivery: 2 to 7 Days
Product Overview
Fox 2.0 Factory Series 5in. Emulsion Coilover Shock 5/8in. Shaft (Normal Valving) 40/60 - Black/Zinc
| Body | Smooth bore and honed seamless steel |
|---|---|
| Body Plating | Zinc plated for a long-lasting finish |
| Components | Black anodized, CNC machined 6061-T6 billet aluminum |
| Piston | 7075 hard-anodized high-flow aluminum piston* |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seals | High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal* |
| Shafts | Chrome steel |
| Bearing | Spherical, PFTE-lined, heat-treated alloy steel |
| Spring | Not Included |
| Options | Custom compression and rebound valving available (Add -1 to end of part number) |
| Adjustments | Spring preload ring |
| Dual stage crossover ring | |
| Extended | 16.420 |
| Compressed | 11.420 |
| Travel | 5.000 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Emulsion |
| Mounting | 1/2 x 1.25 |
| Valving | 40/60 |
Technical Specifications
| Brand | Fox Suspension |
|---|---|
| MPN | 980-02-000 |
