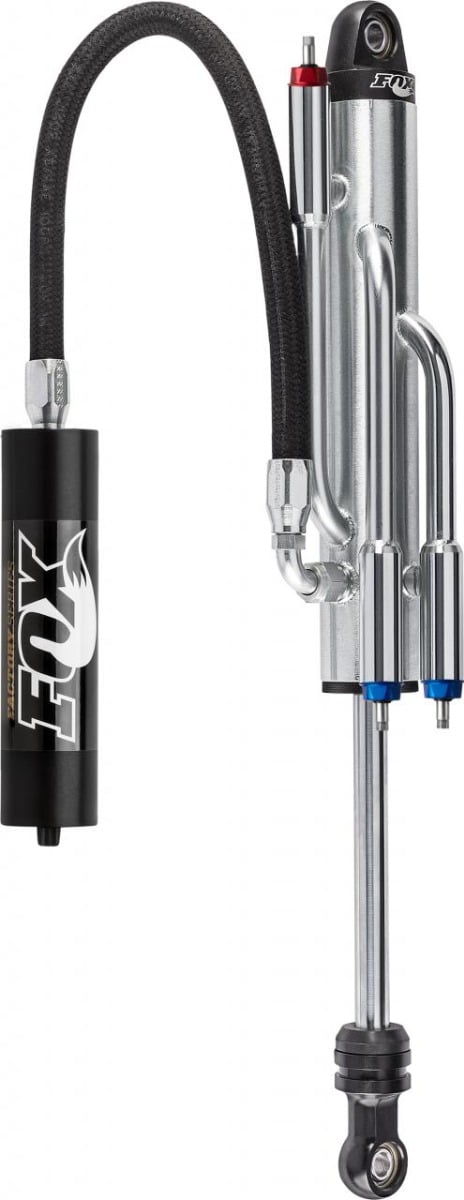

fox 2.5 factory series 10in. remote res. 3-tube bypass shock (2 cmp/1 reb) 7/8in. shft(21/70) - blk 980-02-138
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
At FOX, racing has always been the cornerstone of our product development. FOX devotes countless hours of research and development to design suspension that withstands incredible punishment and provides consistent performance you can rely on.
Our diverse line of bypass shocks, from the 2.5 coil-over with internal bypass to the massive 4.4 inch external bypass, are made with one goal in mind: to win races.
Select a vehicle to confirm fitment
Confirm Vehicle Fitment
$1,099.95/ ea
Out of Stock
Fitment Guarantee
Warranty
Product Overview
Fox 2.5 Factory Series 10in. Remote Res. 3-Tube Bypass Shock (2 Cmp/1 Reb) 7/8in. Shft(21/70) - Blk
| Body | Smooth bore and honed seamless steel |
|---|---|
| Body Plating | Zinc plated for a long-lasting finish |
| Components | Black anodized, CNC machined 6061-T6 billet aluminum |
| Piston | Stainless steel for improved performance at high temperatures* |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seals | High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal* |
| Shafts | 17-4 H900 hard chrome plated stainless steel |
| Bearing | Spherical, PFTE-lined, heat-treated alloy steel |
| Options | Custom compression and rebound valving available (Add -1 to end of part number) |
| Adjustments | Rotating Body Cap |
| Compression bypass adjusters | |
| Rebound bypass adjusters | |
| Free bleed bypass adjuster | |
| Extended | 29.430 |
| Compressed | 19.430 |
| Travel | 10.000 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Remote |
| Reservoir Size | 2.5 x 10.0 |
| Hose | -10 x 28.0 |
| Mounting | 1/2 x 1.50 |
| Valving | 2,1/70 |
Technical Specifications
| Brand | Fox Suspension |
|---|---|
| MPN | 980-02-138 |
