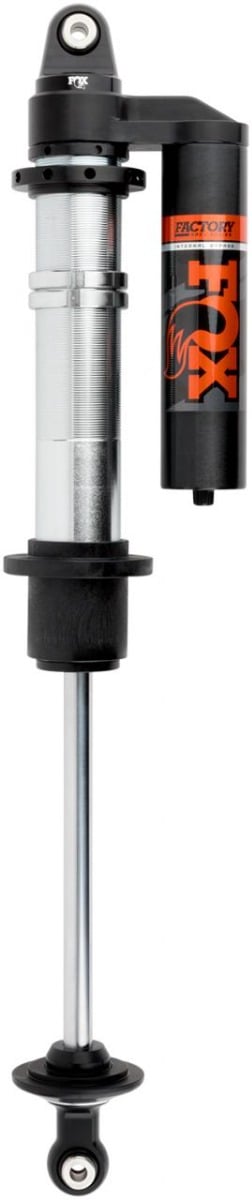

fox 2.5 factory series 12in. int. bypass p/b res. coilover shock 7/8in. shaft (custom valving) - blk 980-02-141-1
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
Our Factory Series Coil-Over With Internal Bypass does it all. Position-sensitive internal-bypass control in a coil-over body.
For classes that mandate a single shock per wheel or anyone who wants it all. Provides bypass damping and suspends the vehicle in a compact lightweight package.
Select a vehicle to confirm fitment
Confirm Vehicle Fitment
$929.95/ ea
Out of Stock
Fitment Guarantee
Warranty
Product Overview
Fox 2.5 Factory Series 12in. Int. Bypass P/B Res. Coilover Shock 7/8in. Shaft (Custom Valving) - Blk
| Body | Smooth bore and honed seamless steel |
|---|---|
| Body Plating | Zinc plated for a long-lasting finish |
| Components | Black anodized, CNC machined 6061-T6 billet aluminum |
| Piston | 7075 hard-anodized high-flow aluminum piston* |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seals | High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal* |
| Shafts | 17-4 H900 hard chrome plated stainless steel |
| Bearing | Spherical, PFTE-lined, heat-treated alloy steel |
| Spring | Not Included |
| Options | Custom compression and rebound valving available (Add -1 to end of part number) |
| Adjustments | Spring preload ring |
| Dual stage crossover ring | |
| Extended | 33.430 |
| Compressed | 21.430 |
| Travel | 12.000 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Piggyback |
| Reservoir Size | 2.5 x 11.0 |
| Mounting | 1/2 x 1.50 |
| Valving | 2,1/70 |
Technical Specifications
| Brand | Fox Suspension |
|---|---|
| MPN | 980-02-141-1 |
