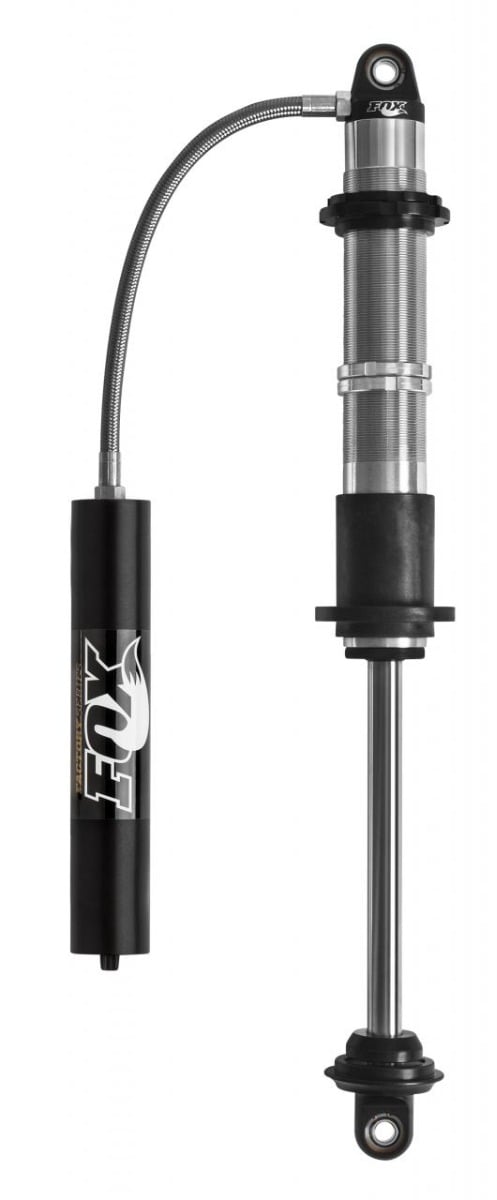

fox 2.5 performance series 12in. remote reservoir coilover shock 7/8in. shaft 983-02-104
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
Off-road Performance Series coil-over shocks take advantage of our tried and-true coil-over design and incorporates features like rubber braided steel hoses with high-flow fittings for improved durability and performance.
Pinch-bolt spring preload rings allow easy ride height and preload adjustment and retain the top quality racing coil selected to deliver your optimal spring rate. Our off-road Performance Series coil-over shocks will suspend your vehicle’s weight and provide our race-proven, performance damping technology to tame the toughest terrain. If you are looking for a comfortable ride and predictable off-road handling, look no further.
Confirm Vehicle Fitment
Estimated Delivery: 2 to 7 Days
Product Overview
Fox 2.5 Performance Series 12in. Remote Reservoir Coilover Shock 7/8in. Shaft
| Body | Smooth bore and honed seamless steel |
|---|---|
| Body Plating | Zinc plated for a long-lasting finish |
| Components | Black anodized, CNC machined 6061-T6 billet aluminum |
| Piston | Race developed high flow design |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seals | Redundant sealing pack system, main seal, wiper seal, scraper seal* |
| Shafts | 17-4 H900 hard chrome plated stainless steel |
| Bearing | Spherical, PFTE-lined, heat-treated alloy steel |
| Spring | Not Included |
| Adjustments | Spring preload ring |
| Dual stage crossover ring | |
| Extended | 32.450 |
| Compressed | 20.440 |
| Travel | 12.010 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Remote |
| Reservoir Size | 2.5 x 14.00 |
| Hose | -8 x 18.0 |
| Mounting | 1/2 x 1.50 |
| Valving | 50/70 |
Technical Specifications
| Brand | Fox Suspension |
|---|---|
| MPN | 983-02-104 |
