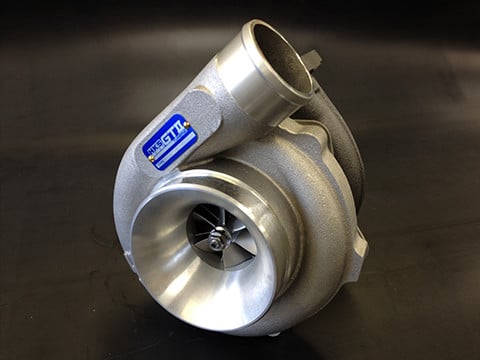

hks gtii8262 54t t25-wg 14001-ak030

All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.

HKS original design ball bearing type turbo.
This turbine was designed as a higher power model of GT II 7460 49T 0.69A/R (14001-AK018). Simply replacing with this turbine can upgrade the current specification easily.
The size of this turbine is designed to be comparable to HKS GT3037S and GT3240. It is designed to withstand the engine output between 400hp (295kw) to 520hp (383kw).
Compressor housing inlet diameter is 100mm, the outlet is a hose type with diameter of 50mm, the exhaust inlet flange is T25, and the outlet flange is 4-bolt 65mm flange.
* Oil line fitment is slightly different from GT3037S or GT3240, but simple modification can be made in order to replace the turbine.
- Oil Inlet Banjo Bolt for GTII M12 P1.25mm
- Oil Outlet Flange for GTII : P=38mm M6 Bolt x 2

$2,539.40/ ea

Out of Stock

Fitment Guarantee

Warranty

Product Overview

Technical specifications for this product
Brand	HKS
MPN	14001-AK030
