icon 03-08 ram 2500/3500 4wd 4.5" stage 2 suspension system k214501t

OVERVIEW

2003-2008 RAM 2500/3500 4WD 4.5" LIFT STAGE 2 SUSPENSION SYSTEM

Features and Benefits

• ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Correctly positioned steering and track bar components
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" w/ 5.25" BS / 13mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20" x 9" w/5.75" BS / 19mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #126: Trucks Equipped With 03-06 Style Steering Will Require 4" Drop Pitman Arm (Not Included) Or Upgrade To 07-12 Steering Setup. Trucks Equipped With 07-12 Style Steering Will Need ICON Pitman Arm Part# 214101
• Ships in Multiple Boxes

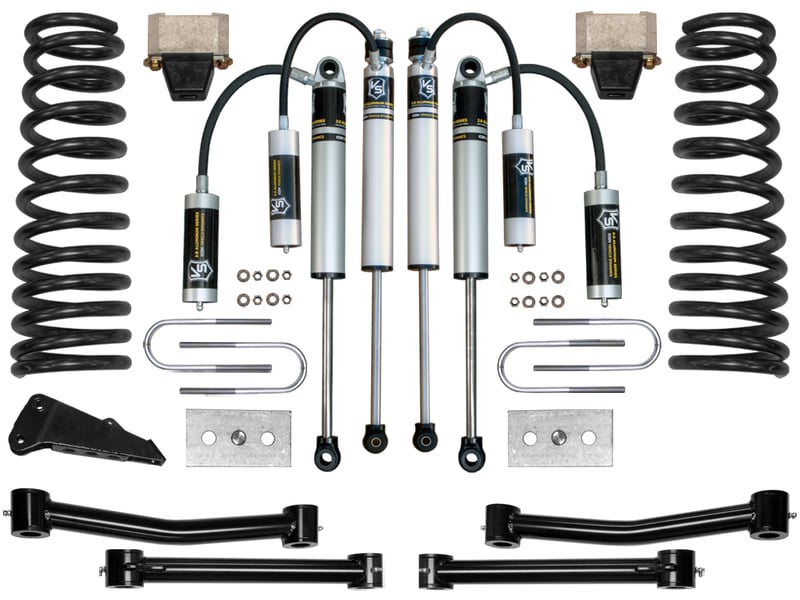

System Components

• 214010 (QTY: 1) | 03-12 RAM HD 4WD 4.5" DUAL RATE SPRING KIT
• 214040 (QTY: 1) | 03-12 RAM HD 4.5" BOX KIT
• 214027 (QTY: 1) | 03-12 RAM HD FIXED TUBULAR LINK KIT
• 211205 (QTY: 1) | 03-12 RAM HD 4WD 2.5" BLOCK KIT
• 37023 (QTY: 1) | 99-10 FSD DUALLY/03-12 RAM HD 15" U-BOLT KIT
• 216523R (QTY: 2) | 03-12 RAM HD 4.5" FRONT 2.0 VS RR
• 216522R (QTY: 2) | 03-12 RAM HD 0-3" REAR 2.0 VS RR
