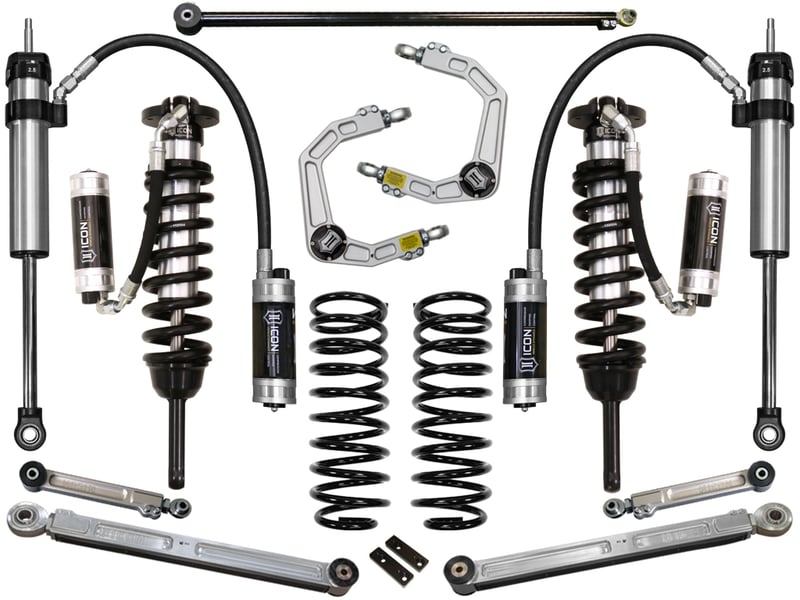

icon 03-09 4runner/fj 0-3" stage 7 suspension system w billet uca k53057

OVERVIEW

03-09 4RUNNER/2007-2009 FJ CRUISER 0-3.5" STAGE 7 SUSPENSION SYSTEM W BILLET UCA

Features and Benefits

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Billet Aluminum rear upper and lower links offer on vehicle pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Adjustable rear track bar proper rear axle placement under vehicle
• Bolt-on system means no cutting or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES
• APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in multiple boxes

System Components

• 58745C (QTY: 1) | 07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL CDCV COILOVER KIT
• 58551DJ (QTY: 1) | 07-14 FJ/03-24 4RNR/03-23 GX BILLET UCA DJ KIT
• 54000 (QTY: 1) | 07-14 FJ/03-23 4RNR/08-21 LC 200/03-23 GX BILLET LOWER TRAILING ARM KIT
• 54100 (QTY: 1) | 07-14 FJ/03-24 4RNR/03-23 GX BILLET UPPER TRAILING ARM KIT
• 54200 (QTY: 1) | 07-14 FJ/03-24 4RNR/03-23 GX REAR ADJ TRACK BAR KIT
• 52700 (QTY: 1) | 07-14 FJ/03-24 4RNR/03-23 GX REAR 2" SPRING KIT
• 57810CP (QTY: 1) | 07-14 FJ/03-24 4RNR/03-23 GX 1-3" REAR 2.5 VS RR CDCV PAIR
