icon 03-12 ram 2500/3500 4wd 2.5" stage 5 suspension system k212505t

OVERVIEW

2003-2012 RAM 2500/3500 4WD 2.5" LIFT STAGE 4 SUSPENSION SYSTEM

Features and Benefits

• ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series shocks with CDCV
• 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• CDCV (Compression Damping Control Valve) allows external adjustability of compression valving
• Adjustable track bar with PTFE lined FK bearings
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25" BS / 13mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in Multiple Boxes

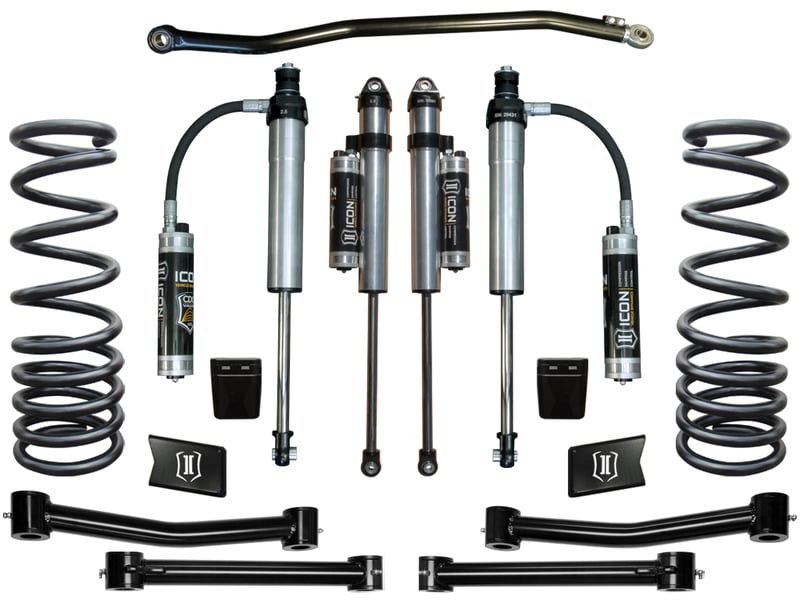

System Components

• 212500 (QTY: 1) | 03-12 RAM HD 4WD 2.5" DUAL RATE SPRING KIT
• 214030 (QTY: 1) | 03-12 RAM HD ADJ TRACK BAR KIT
• 214027 (QTY: 1) | 03-12 RAM HD FIXED TUBULAR LINK KIT
• 217800CP (QTY: 1) | 03-12 RAM HD 2.5" FRONT 2.5 VS RR CDCV PAIR
• 217701CP (QTY: 1) | 03-12 RAM HD 2-3" REAR 2.5 VS PB CDCV PAIR
