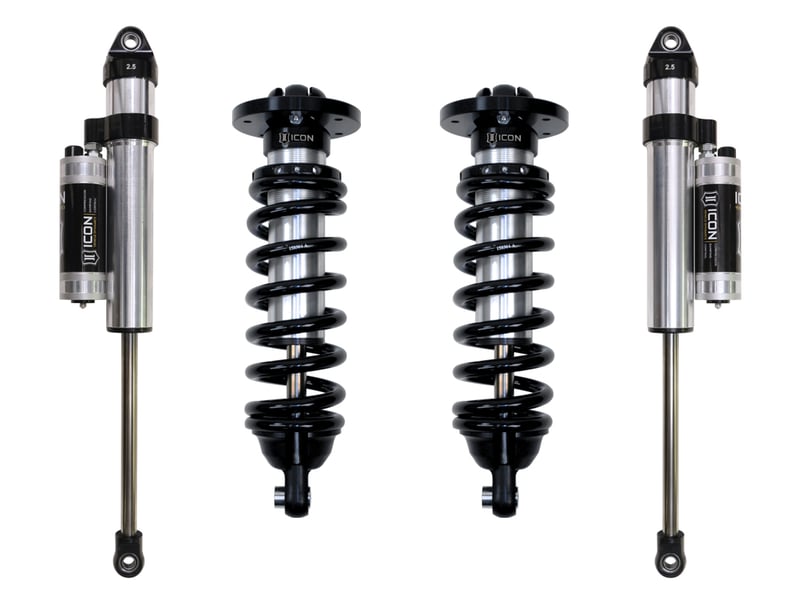

icon 04-15 nissan titan 2/4wd 0-3" stage 3 suspension system k83003

OVERVIEW

2004-2015 NISSAN TITAN 2/4WD 0-3" LIFT STAGE 3 SUSPENSION SYSTEM

Features and Benefits

• Fits 2WD and 4WD applications
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from 0-3" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• ICON CDC Valve allows quick and easy end user compression adjustability
• 100% bolt-on system means no drilling, cutting, or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in multiple boxes

System Components

• 81000 (QTY: 1) | 04-15 TITAN 2.5 VS IR COILOVER KIT
• 87700CP (QTY: 1) | 04-15 TITAN 0-1.5" REAR 2.5 VS PB CDCV PAIR
