icon 05-07 ford f-250/f-350 7" stage 4 suspension system k67103

OVERVIEW

2005-2007 FORD F-250/F-350 7" LIFT STAGE 4 SUSPENSION SYSTEM

Features and Benefits

• 50% increase in wheel travel
• Less body-roll than stock truck
• State of the art dual-rate coil spring
• Lifetime guarantee that coil springs won't sag
• Clears 37" Tall Tires
• No change in towing capacity
• No driveshaft modifications needed
• 100% Bolt-on system - No drilling, cutting or welding necessary for install
• Vehicle Specific tuned 2.5 Aluminum Series Piggyback Reservoir shocks for incredible ride quality

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
• APPLICATION NOTE #28: Pinch Weld On '05-'10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
• APPLICATION NOTE #29: 7" Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #57: RETAINS FACTORY BLOCK FOR TRUCK TO SIT LEVEL WITH FRONT OF TRUCK
• Ships in multiple boxes

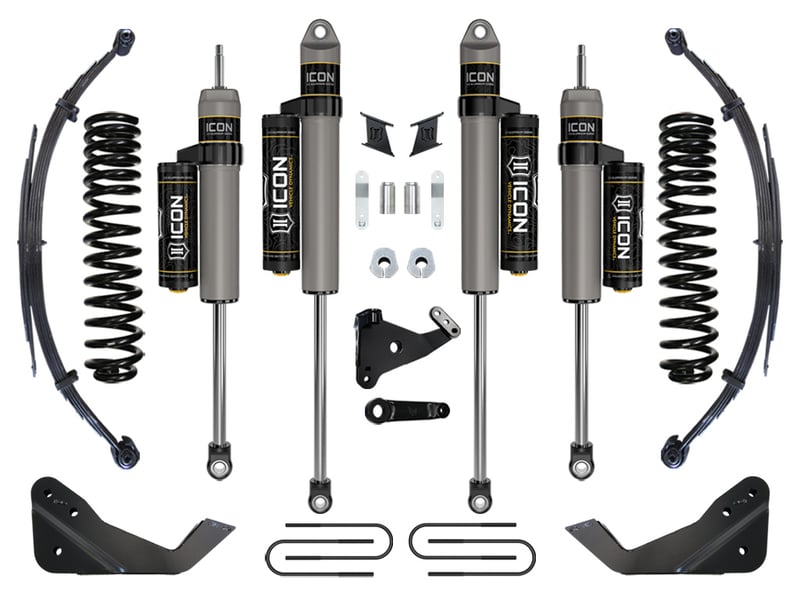

System Components

• 67010 (QTY: 1) | 05-07 FSD FRONT 7" BOX KIT
• 67015 (QTY: 1) | 05-24 FSD FRONT 7" DUAL RATE SPRING KIT
• 62530 (QTY: 1) | 05-23 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
• 64040 (QTY: 1) | 05-10 FSD RADIUS ARM DROP KIT
• 138508 (QTY: 2) | 99-07 FSD 5" REAR LEAF SPRING PACK
• 37003 (QTY: 1) | 99-10 FSD REAR 15" U-BOLT KIT
• 67720P (QTY: 1) | 05-24 FSD 4WD 7" FRONT 2.5 VS PB PAIR
• 37701P (QTY: 1) | 99-24 FSD 3-6" REAR 2.5 VS PB PAIR
