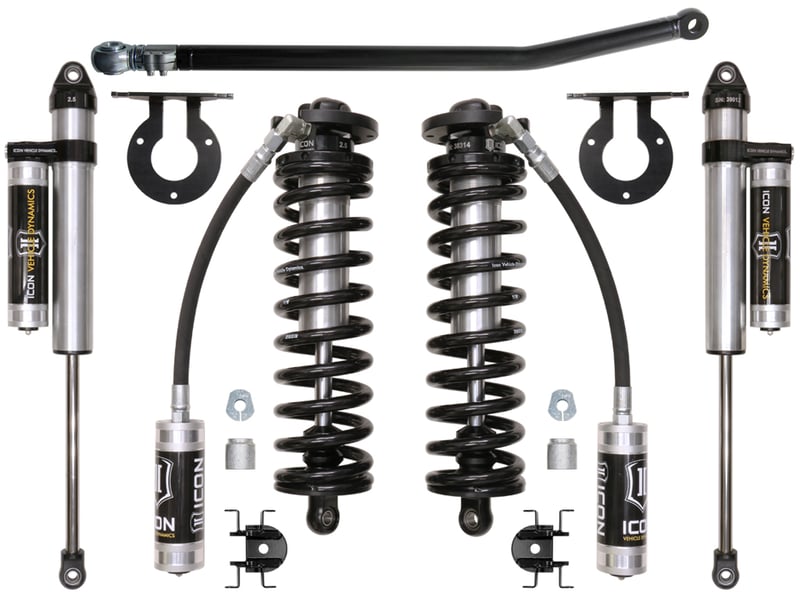

icon 05-16 ford f-250/f-350 2.5-3" stage 3 coilover conversion system k63103

OVERVIEW

2005-2016 FORD F-250/F-350 2.5-3" LIFT STAGE 3 COILOVER CONVERSION SYSTEM

Features and Benefits

• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers (2.5-3")
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Rear shocks feature anodized, one-piece impact extruded aluminum shock bodies
• Eibach coil springs guaranteed for life against sagging or breakage

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
• TECH NOTE: 2005-2016 F-250s require 4" rear blocks with 15" U-bolt kit to sit level with 2.5" lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
• Ships in multiple boxes

System Components

• 61720 (QTY: 1) | 05-23 F250/F350 4WD 2.5-3" 2.5 VS RR BOLT IN CO CONVERSION KIT W/ CAMS
• 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
• 37705P (QTY: 1) | 99-24 FSD 0-3" REAR 2.5 VS PB PAIR
