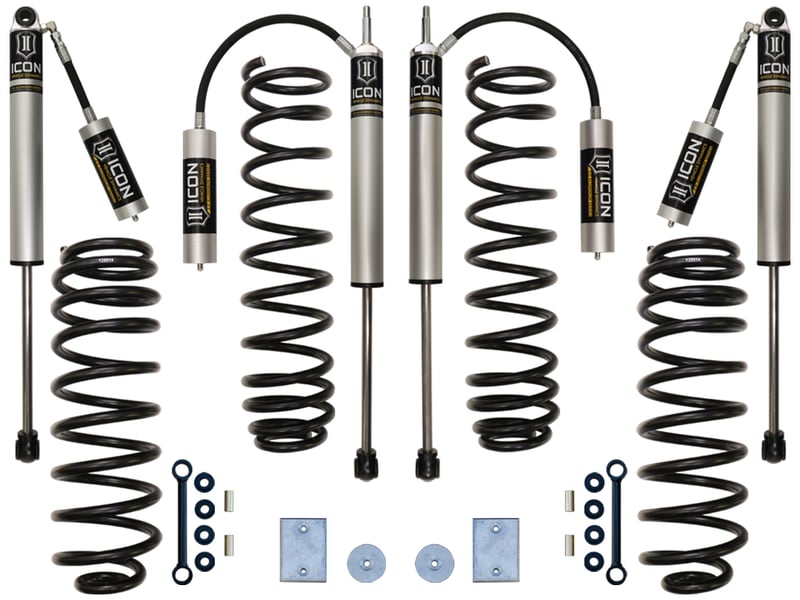

icon 07-18 jeep jk 3" stage 2 suspension system k22002

OVERVIEW

2007-2018 JEEP JK 3" LIFT STAGE 2 SUSPENSION SYSTEM

Features and Benefits

• Dual Rate Coil Springs Front and Rear
• Adds 30% More Wheel Travel over Stock
• Vehicle can be Returned Back to Stock
• No Welding or Cutting
• Includes High Performance Re-buildable / Re-valvable Remote Reservoir 2.0 Aluminum Series Shocks
• Out Articulates Most Long Arm Kits of Comparable Height
• Lifetime Guarantee that Coil Springs Won't Sag

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5" Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
• APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
• APPLICATION NOTE #63: 2012-UP JK MODELS REQUIRE THE USE OF ICON PART #22011 EXHAUST EXTENSION SPACER OR AFTERMARKET DRIVESHAFT PART #22014
• APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
• APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT
• APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
• TECH NOTE: ICON's advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• Ships in Multiple Boxes

System Components

• 22010 (QTY: 1) | 07-18 JK FRONT 3" DUAL RATE SPRING KIT
• 22015 (QTY: 1) | 07-18 JK REAR 2" DUAL RATE SPRING KIT
• 22040 (QTY: 1) | 07-18 JK 3" FRONT/REAR BOX KIT
• 26519R (QTY: 2) | 07-18 JK 2-3" FRONT 2.0 VS RR
• 26520R (QTY: 2) | 07-18 JK 2-3" REAR 2.0 VS RR
