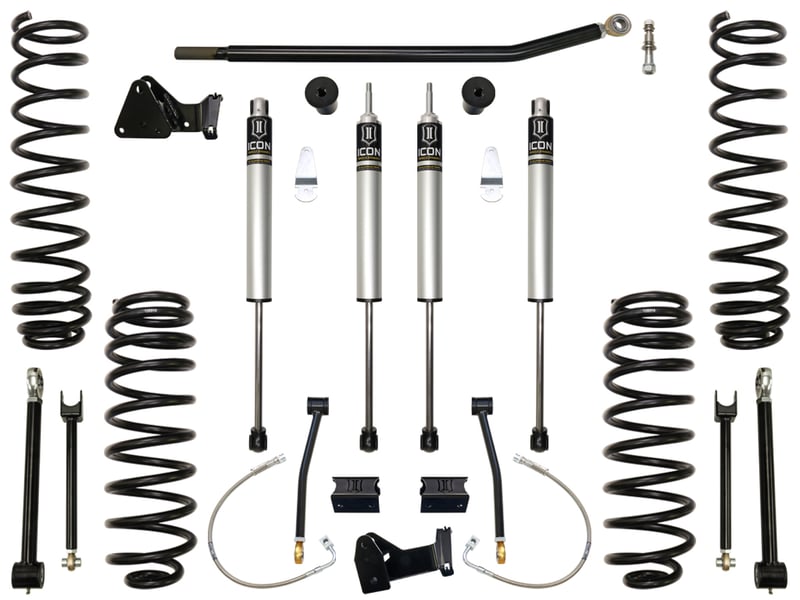

icon 07-18 jeep jk 4.5" stage 1 suspension system k24001

OVERVIEW

2007-2018 JEEP JK 4.5" LIFT STAGE 1 SUSPENSION SYSTEM

Features and Benefits

• Dual-rate coil springs front and rear guaranteed never to sag
• High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
• Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
• All links utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
• Includes high-performance rebuildable and revalvable 2.0 Aluminum Series shocks
• Increased wheel travel and articulation over stock
• No welding or cutting required
• 100% returnable to stock

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5" Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
• APPLICATION NOTE #62: Front Driveshaft Can Hit Certain Model Skid Plates At Full Droop And May Need To Be Trimmed For Full Articulation
• APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
• APPLICATION NOTE #80: Front Drive Shaft Required For Proper Front Driveline Clearance (ICON Part #22014 [12-Up] / #22016 [07-11]
• APPLICATION NOTE #123: May Require Rear Alignment Cam Kit
• APPLICATION NOTE #150: Shocks Are Fully Serviceable
• TECH NOTE: ICON's advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• Ships In Multiple Boxes

System Components

• 24010 (QTY: 1) | 07-18 JK FRONT 4.5" DUAL-RATE SPRING KIT
• 24015 (QTY: 1) | 07-18 JK REAR 4.5" DUAL- RATE SPRING KIT
• 21010 (QTY: 1) | 07-18 JK FRONT 4.5" BOX KIT
• 21000 (QTY: 1) | 07-18 JK REAR 4.5" BOX KIT
• 21036 (QTY: 1) | 07-18 JK FRONT UPPER ADJ LINK KIT
• 21041 (QTY: 1) | 07-18 JK REAR LOWER ADJ LINK KIT
• 26517 (QTY: 2) | 07-18 JK 4.5" FRONT 2.0 VS IR
• 26518 (QTY: 2) | 07-18 JK 4.5" REAR 2.0 VS IR
