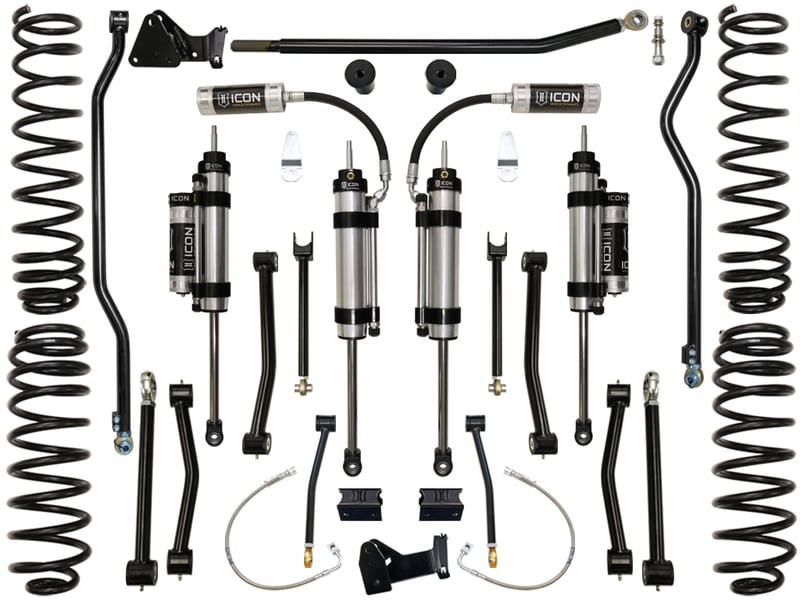

icon 07-18 jeep jk 4.5" stage 5 suspension system k24005

OVERVIEW

2007-2018 JEEP JK 4.5" LIFT STAGE 5 SUSPENSION SYSTEM

Features and Benefits

• Dual-rate coil springs front and rear guaranteed never to sag
• High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
• Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
• All links and track bars utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
• Track bars are on vehicle adjustable designed for optimizing axle postion
• Includes high-performance rebuildable and revalvable reservoir 2.5 Series shocks w/ CDCV
• Easy to operate compression adjuster for user shock tune-ability front and rear
• Increased wheel travel and articulation over stock
• 100% returnable to stock

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5" Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
• APPLICATION NOTE #62: FRONT DRIVESHAFT CAN HIT CERTAIN MODEL SKID PLATES AT FULL DROOP AND MAY NEED TO BE TRIMMED FOR FULL ARTICULATION
• APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
• APPLICATION NOTE #80: Front Drive Shaft Required For Proper Front Driveline Clearance (ICON Part #22014 [12-Up] / #22016 [07-11]
• APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT
• APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
• TECH NOTE: ICON's advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• Ships In Multiple Boxes

System Components

• 24010 (QTY: 1) | 07-18 JK FRONT 4.5" DUAL-RATE SPRING KIT
• 24015 (QTY: 1) | 07-18 JK REAR 4.5" DUAL- RATE SPRING KIT
• 21010 (QTY: 1) | 07-18 JK FRONT 4.5" BOX KIT
• 21000 (QTY: 1) | 07-18 JK REAR 4.5" BOX KIT
• 21020 (QTY: 1) | 07-18 JK FRONT ADJ TRACK BAR KIT
• 21025 (QTY: 1) | 07-18 JK REAR ADJ TRACK BAR KIT
• 21031 (QTY: 1) | 07-18 JK FRONT LOWER FIXED LINK KIT
• 21036 (QTY: 1) | 07-18 JK FRONT UPPER ADJ LINK KIT
• 21041 (QTY: 1) | 07-18 JK REAR LOWER ADJ LINK KIT
• 21046 (QTY: 1) | 07-18 JK REAR UPPER FIXED LINK KIT
• 29940P (QTY: 1) | 07-18 JK 4.5" FRONT 2.5 OMEGA VS RR PAIR
• 29945P (QTY: 1) | 07-18 JK 4.5" REAR 2.5 OMEGA VS PB PAIR
