icon 08-10 ford f250/f350 4.5" stage 1 suspension system k64550

OVERVIEW

2008-2010 FORD F250/F350 4.5" LIFT STAGE 1 SUSPENSION SYSTEM

Features and Benefits

• 50% increase in wheel travel
• Less body-roll than stock truck
• 4.5" more travel from ride height to front bump stops
• Dual rate coil spring
• Lifetime guarantee that coil springs won't sag
• Clears 35" tall tires & 37" tall tires w/ minor trimming
• No change in towing capacity
• No drive shaft modifications needed
• 100% bolt-on system - no drilling, cutting or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
• APPLICATION NOTE #28: Pinch Weld On '05-'10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
• APPLICATION NOTE #31: '08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in multiple boxes

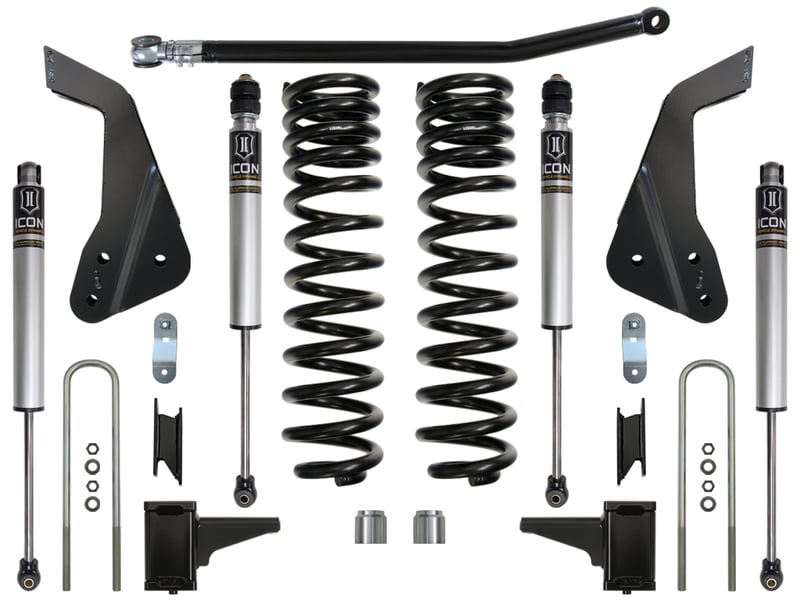

System Components

• 64050 (QTY: 1) | 08-22 FSD FRONT 4.5" BOX KIT
• 64010 (QTY: 1) | 05-19 FSD FRONT 4.5" DUAL RATE SPRING KIT
• 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
• 64040 (QTY: 1) | 05-10 FSD RADIUS ARM DROP KIT
• 195275 (QTY: 1) | 99-24 FSD 5" BLOCK KIT
• 37002 (QTY: 1) | 99-10 FSD REAR 17" U-BOLT KIT
• 66513 (QTY: 2) | 05-22 FSD 4WD 4.5" FRONT 2.0 VS IR
• 36508 (QTY: 2) | 99-16 FSD 4WD 3-6" REAR 2.0 VS IR
