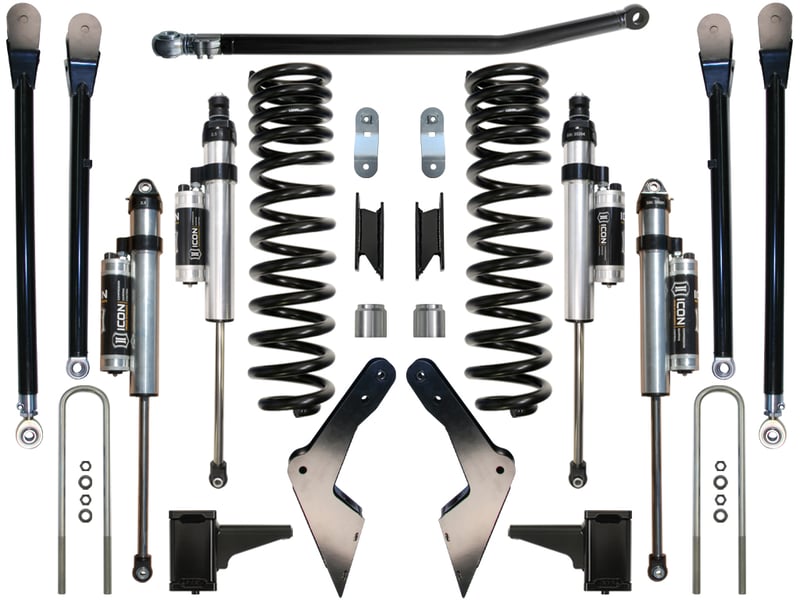

icon 08-10 ford f250/f350 4.5" stage 4 suspension system k64553

OVERVIEW

2008-2010 FORD F250/F350 4.5" LIFT STAGE 4 SUSPENSION SYSTEM

Features and Benefits

• 50% increase in wheel travel
• Less body-roll than stock truck
• 4.5" more travel from ride height to front bump stops
• Dual rate coil spring
• Lifetime guarantee that coil springs won't sag
• Clears 35" tall tires & 37" tall tires w/ minor trimming
• No change in towing capacity
• No drive shaft modifications needed
• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
• 100% bolt-on system - no drilling, cutting or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
• APPLICATION NOTE #28: Pinch Weld On '05-'10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
• APPLICATION NOTE #31: '08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in multiple boxes

System Components

• 64050 (QTY: 1) | 08-22 FSD FRONT 4.5" BOX KIT
• 64010 (QTY: 1) | 05-19 FSD FRONT 4.5" DUAL RATE SPRING KIT
• 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
• 164500 (QTY: 1) | 05-10 FSD 4 LINK FRAME BRACKET KIT
• 164501 (QTY: 1) | 05-22 FSD FRONT UPPER LINKS
• 164502 (QTY: 1) | 05-23 FSD FRONT LOWER LINKS
• 195275 (QTY: 1) | 99-24 FSD 5" BLOCK KIT
• 37002 (QTY: 1) | 99-10 FSD REAR 17" U-BOLT KIT
• 67710CP (QTY: 1) | 05-22 FSD 4WD 4.5" FRONT 2.5 VS PB CDCV PAIR
• 37701CP (QTY: 1) | 99-24 FSD 3-6" REAR 2.5 VS PB CDCV PAIR
