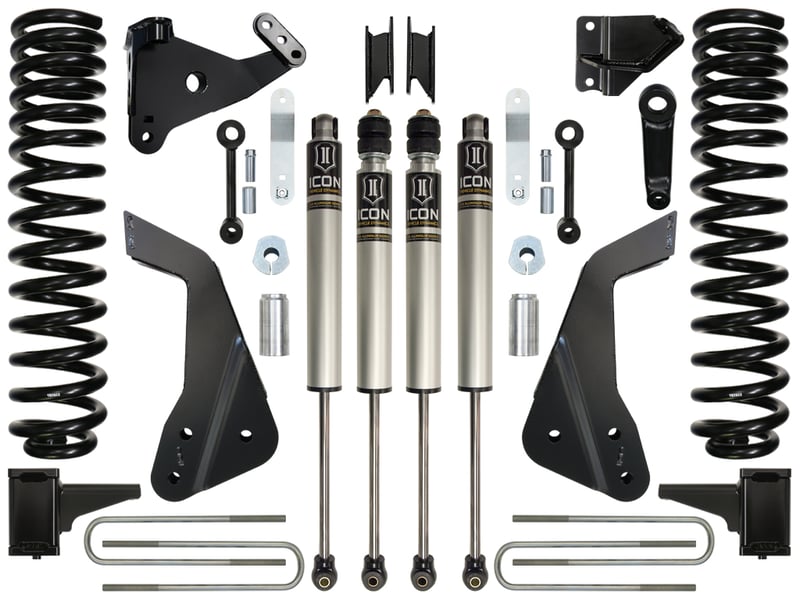

icon 08-10 ford f250/f350 7" stage 1 suspension system k67200

OVERVIEW

2008-2010 FORD F250/F350 7" LIFT STAGE 1 SUSPENSION SYSTEM

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Decreased body roll
• ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
• Hard anodized aluminum shock body with 5/8" polished chrome plated shaft
• Heavy duty radius arm drop brackets
• Correctly positioned steering and track bar components
• No drive shaft modifications needed

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
• APPLICATION NOTE #28: Pinch Weld On '05-'10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
• APPLICATION NOTE #29: 7" Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms
• APPLICATION NOTE #31: '08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #56: Rear Add-A-Leaf Required For Truck To Sit Level When Using 6" Block Included In Kit
• Ships in multiple boxes

System Components

• 67020 (QTY: 1) | 08-10 FSD FRONT 7" BOX KIT
• 67015 (QTY: 1) | 05-24 FSD FRONT 7" DUAL RATE SPRING KIT
• 62530 (QTY: 1) | 05-23 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
• 64040 (QTY: 1) | 05-10 FSD RADIUS ARM DROP KIT
• 196276 (QTY: 1) | 08-24 FSD 6" OFFSET BLOCK KIT
• 37002 (QTY: 1) | 99-10 FSD REAR 17" U-BOLT KIT
• 66514 (QTY: 2) | 05-24 FSD 4WD 7" FRONT 2.0 VS IR
• 36508 (QTY: 2) | 99-16 FSD 4WD 3-6" REAR 2.0 VS IR
