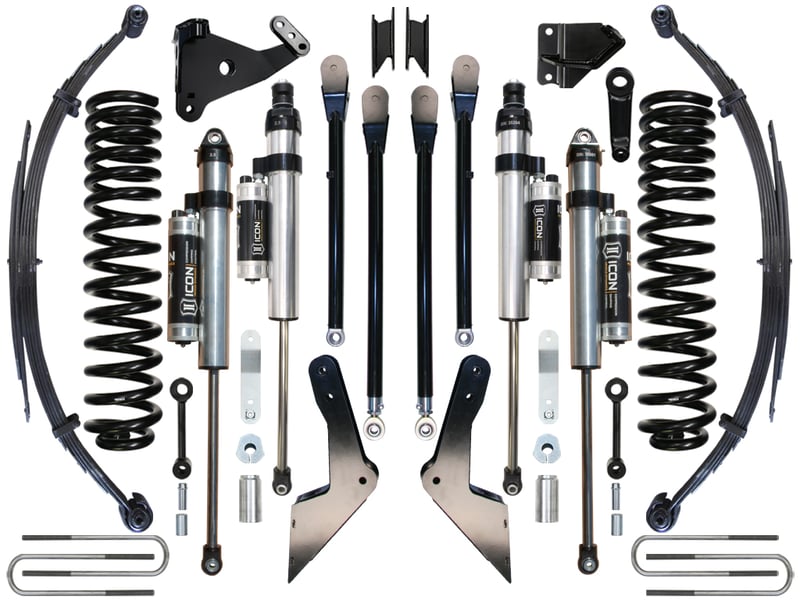

icon 08-10 ford f250/f350 7" stage 5 suspension system k67204

OVERVIEW

2008-2010 FORD F250/F350 7" LIFT STAGE 5 SUSPENSION SYSTEM

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Decreased body roll
• ICON engineered dual rate coil springs with match tuned 2.5 Series reservoir shocks w/ CDCV
• Shock absorbers feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Adjustable 4 link system
• Correctly positioned steering and track bar components
• Rear progressive design leaf pack for smooth compliant ride
• No drive shaft modifications needed

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
• APPLICATION NOTE #28: Pinch Weld On '05-'10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
• APPLICATION NOTE #29: 7" Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms
• APPLICATION NOTE #31: '08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #57: RETAINS FACTORY BLOCK FOR TRUCK TO SIT LEVEL WITH FRONT OF TRUCK
• Ships in multiple boxes

System Components

• 67020 (QTY: 1) | 08-10 FSD FRONT 7" BOX KIT
• 67015 (QTY: 1) | 05-24 FSD FRONT 7" DUAL RATE SPRING KIT
• 164500 (QTY: 1) | 05-10 FSD 4 LINK FRAME BRACKET KIT
• 164501 (QTY: 1) | 05-22 FSD FRONT UPPER LINKS
• 164502 (QTY: 1) | 05-23 FSD FRONT LOWER LINKS
• 168505A (QTY: 2) | 08-16 FSD REAR 5" LEAF SPRING PACK
• 37003 (QTY: 1) | 99-10 FSD REAR 15" U-BOLT KIT
• 67720CP (QTY: 1) | 05-24 FSD 4WD 7" FRONT 2.5 VS PB CDCV PAIR
• 37701CP (QTY: 1) | 99-24 FSD 3-6" REAR 2.5 VS PB CDCV PAIR
