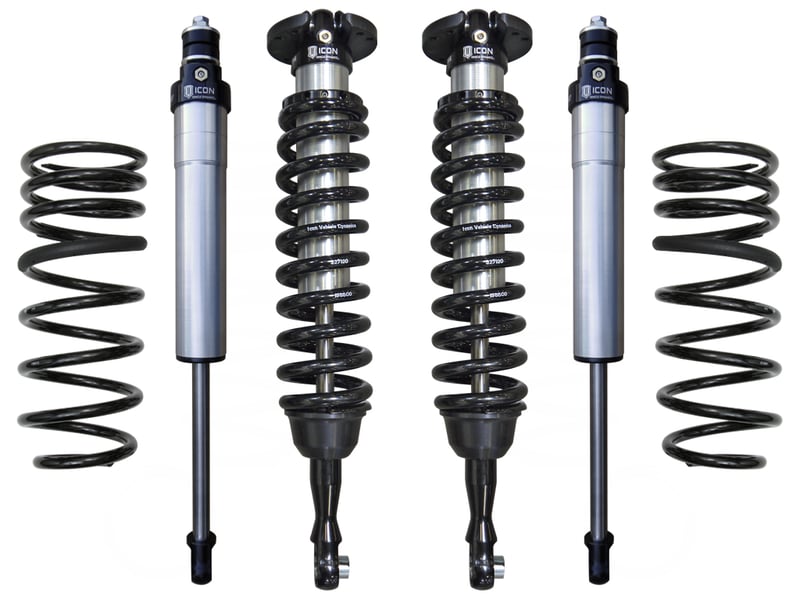

icon 08-up land cruiser 200 series 1.5-3.5" stage 1 suspension system k53071

OVERVIEW

2008-UP TOYOTA LAND CRUISER 200 SERIES 1.5-3.5" LIFT STAGE 1 SUSPENSION SYSTEM

Features and Benefits

• Bolt-on design means no cutting or welding necessary for install
• Increased wheel travel and ride quality over stock
• Improved vehicle dynamics and decreased body roll
• Height adjustable coilovers provide 1.5-3.5" of lift height
• ICON engineered dual rate rear coil springs
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Shocks are fully rebuildable and revalveable

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5" Of Lift. Above 2.5" Of Lift An Aftermarket UCA Is Recommended.
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
• Ships in multiple boxes

System Components

• 58660 (QTY: 1) | 08-UP LC 200 2.5 VS IR COILOVER KIT
• 52750 (QTY: 1) | 08-UP LC 200 1.75" DUAL RATE REAR SPRING KIT
• 57625P (QTY: 1) | 08-UP LC 200 0-2" REAR 2.5 VS NR PAIR
