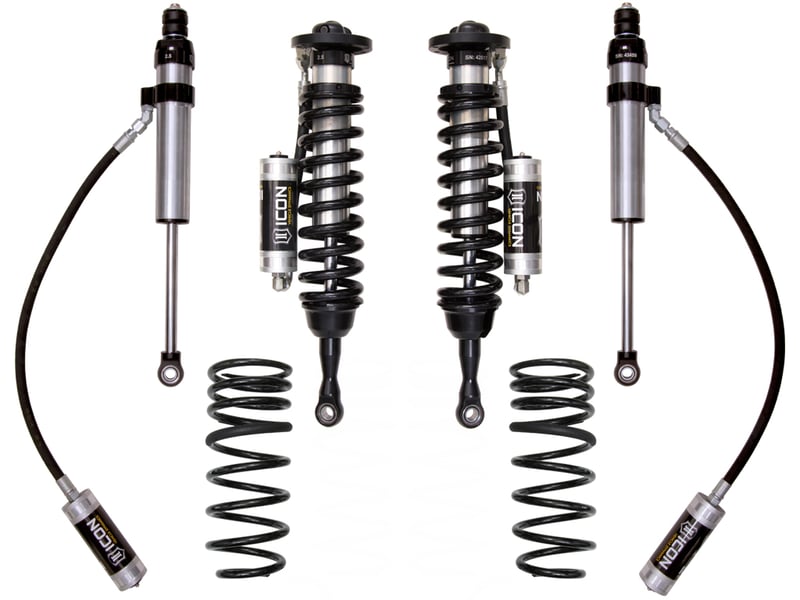

icon 08-up land cruiser 200 series 1.5-3.5" stage 2 suspension system k53072
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
Increased wheel travel and ride quality over stock
Select a vehicle to confirm fitment
Confirm Vehicle Fitment
$3,661.26/ ea
Out of Stock
Fitment Guarantee
Warranty
Product Overview
OVERVIEW
2008-UP TOYOTA LAND CRUISER 200 SERIES 1.5-3.5" LIFT STAGE 2 SUSPENSION SYSTEM
Features and Benefits
- Increased wheel travel and ride quality over stock
- Improved vehicle dynamics and decreased body roll
- Height adjustable coilovers provide 1.5-3.5" of lift height
- ICON engineered dual rate rear coil springs
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Shocks are fully rebuildable and revalveable
- Bolt-on design means no cutting or welding necessary for install
Tech Info
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5" Of Lift. Above 2.5" Of Lift An Aftermarket UCA Is Recommended.
- APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES
- APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
- Ships in multiple boxes
System Components
- 58760 (QTY: 1) | 08-UP LAND CRUISER 200 2.5 VS RR COILOVER KIT
- 52750 (QTY: 1) | 08-UP LC 200 1.75" DUAL RATE REAR SPRING KIT
- 57825P (QTY: 1) | 08-UP LC 200 0-2" REAR 2.5 VS RR PAIR
Technical Specifications
| Brand | ICON Suspension |
|---|---|
| MPN | K53072 |
