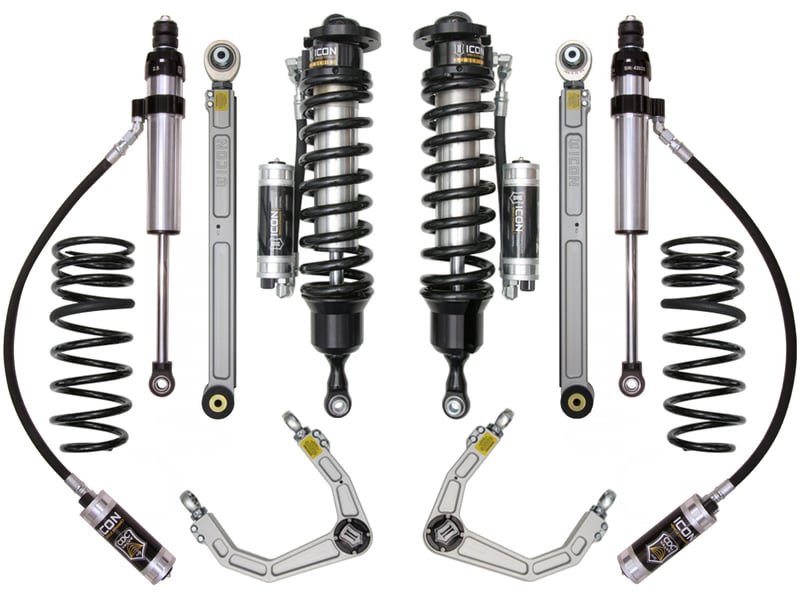

icon 08-up land cruiser 200 series 2.5-3.5" stage 6 suspension system k53076

1 / 2

All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.

Increased wheel travel and ride quality over stock

$8,601.17/ ea

Out of Stock

Fitment Guarantee

Warranty

Product Overview

2008-UP TOYOTA LAND CRUISER 200 SERIES 2.5-3.5" LIFT STAGE 6 SUSPENSION SYSTEM

Increased wheel travel and ride quality over stock
Improved vehicle dynamics and decreased body roll
Height adjustable coilovers provide 2.5-3.5" of lift height
ICON engineered dual rate rear coil springs
Billet Aluminum rear lower links offer on-vehicle pinion angle adjustment
Vehicle-specific tuned front and rear shocks provide superior damping and control
Corrosion resistant CAD plated coilover shock bodies with 1" shafts
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
CDCV technology allows for quick and easy compression damping adjustment without the need for tools
Shocks are fully rebuildable and revalveable
Bolt-on design means no cutting or welding necessary for install

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES
APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
Ships in multiple boxes

58765 (QTY: 1) | 08-UP LC 200 3.0 VS RR CDCV CO KIT
58570DJ (QTY: 1) | 08-UP LC 200 BILLET UCA DJ KIT
57825CP (QTY: 1) | 08-UP LC 200 0-2" REAR 2.5 VS RR CDCV PAIR
52750 (QTY: 1) | 08-UP LC 200 1.75" DUAL RATE REAR SPRING KIT
54000 (QTY: 1) | 07-14 FJ/03-23 4RNR/08-21 LC 200/03-23 GX BILLET LOWER TRAILING ARM KIT

Technical specifications for this product
Brand	ICON Suspension
MPN	K53076
