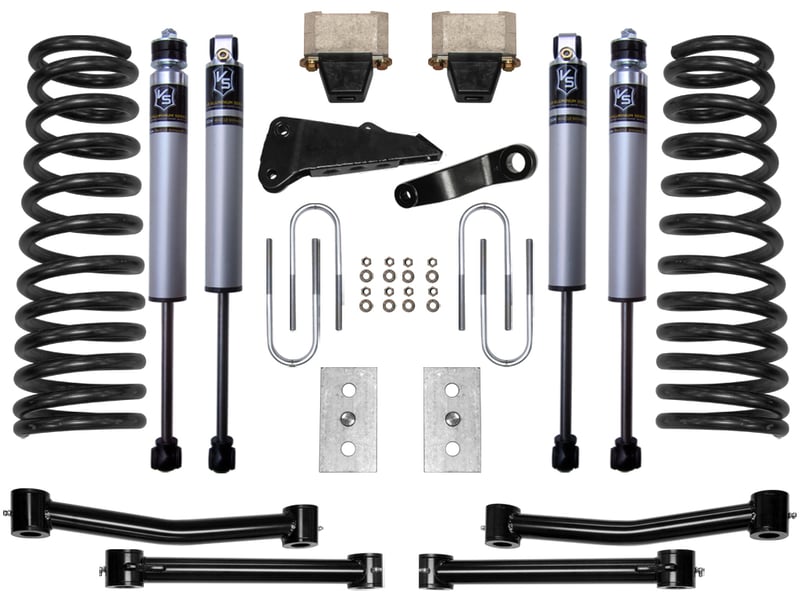

icon 09-12 ram 2500/3500 4.5" stage 1 suspension system k214550t

OVERVIEW

2009-2012 RAM 2500/3500 4.5" LIFT STAGE 1 SUSPENSION SYSTEM

Features and Benefits

• ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Correctly positioned steering and track bar components
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25" Backspace / 13mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #101: CALL ICON FOR 2013 RAM 2500/3500 VEHICLES
• Ships in Multiple Boxes

System Components

• 214010 (QTY: 1) | 03-12 RAM HD 4WD 4.5" DUAL RATE SPRING KIT
• 214101 (QTY: 1) | 09-12 RAM HD DROP PITMAN ARM
• 214040 (QTY: 1) | 03-12 RAM HD 4.5" BOX KIT
• 214027 (QTY: 1) | 03-12 RAM HD FIXED TUBULAR LINK KIT
• 211205 (QTY: 1) | 03-12 RAM HD 4WD 2.5" BLOCK KIT
• 37023 (QTY: 1) | 99-10 FSD DUALLY/03-12 RAM HD 15" U-BOLT KIT
• 216522 (QTY: 2) | 03-12 RAM HD 0-3" REAR 2.0 VS IR
• 216523 (QTY: 2) | 03-12 RAM HD 4.5" FRONT 2.0 VS IR
