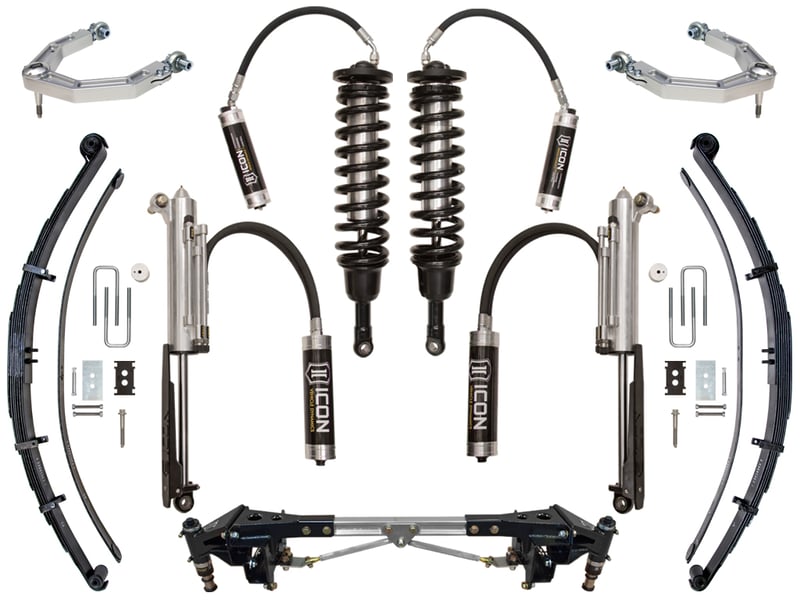

2010-2014 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM

Features and Benefits

• Key Features of the Raptor Front 3.0 Coilover Shock:
• 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coilover Shocks
• Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
• Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
• Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
• Nitrogen Charged 6063-T832 Aluminum 10" Remote Reservoirs
• Adjustable Ride Height from 1 - 3" of Lift
• ICON Engineered Eibach Springs Offer Increased Travel and Performance
• Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
• Oversized 1" Heavy Duty CNC Machined Shock Shafts
• Extended Droop Travel and Increased Overall Performance on and off road
• Key Features of the Raptor Upper Control Arms:
• 6061 Billet Aluminum
• Precision CNC Machined
• Patented Delta Joint (U.S. Patent No. 10,731,700)
• RSMX PTFE Lined 7/8" Rod Ends
• Easily Adjustable on the Vehicle for Perfect Wheel Alignments
• 17-4 Stainless Steel Taper Adapter Pin Provides OEM Like Fitment
• O-ring sealed dust cover
• Key Features of Hydraulic Bump Stop System:
• Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
• Easy bolt on installation without having to remove the truck bed
• 6061 Solid billet cross bar that is polished & anodized
• Bump stop striker pad does not require leaf spring disassembly
• Comfortable on road manners with sufficient damping capability under extreme load
• Hydro-pneumatic bump stop increases bump energy capacity
• Velocity sensitive Hydro-pneumatic bump stop increases the amount of energy absorbed the faster it is hit
• Reduces rear end kick and improves overall performance
• Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use
• Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
• Increases frame rigidity and improves overall vehicle dynamics
• Industry first billet cross beam
• Pre-tuned and Nitrogen charged for most Ford Raptors
• Integrated adjustability for future ICON Raptor specific products
• Key Features of the Raptor RXT Multi-Rate Leaf Spring:
• 3 User-adjustable spring rates for unique setups
• Triple military wrap front eyelet and rear half wrap for increased durability
• Rebound leaf reduces severe axle wrap
• Tip inserts and leaf separators to reduce friction and improve ride comfort
• OE style bonded rubber bushings that are maintenance free and do not squeak
• Bump stop extensions included for use when no aftermarket bump stop kit is installed
• New Ford OE front spring eye bolts included for easy removal and re-installation of springs
• Key Features of the Raptor RXT Rear 3.0 Bypass Shock:
• 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
• Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
• Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
• Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
• Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
• High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
• High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
• Replaceable bypass tubes that can easily be replaced if damaged
• Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
• Special engineered damped valve seats for quiet and precise operation without the standard bypass loud "clicking" noise you will find with other brands
• Multi stage cad plated finish with polished and anodized top cap / rod ends
• Protective shin guards standard with every kit

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #61: AFTERMARKET EXHAUST MAY NEED TO BE SLIGHTLY MODIFIED FOR USE WITH THIS KIT
• APPLICATION NOTE #87: INSTALLATION OF COMPLETE ICON SYSTEM REQUIRED TO ATTAIN ADVERTISED WHEEL TRAVEL. USE OF ANY OTHER MANUFACTURERS COMPONENTS (RE LEAF SPRINGS, BUMP STOP KIT, SHOCKS) WILL NOT PROVIDE ADVERTISED WHEEL TRAVEL AND COULD CAUSE UNKNOWN DAMAGE.
• Ships in multiple boxes

System Components

• 95000L (QTY: 1) | 10-14 RAPTOR FRONT 3.0 VS COILOVER RR CDCV DRVR
• 95000R (QTY: 1) | 10-14 RAPTOR FRONT 3.0 VS COILOVER RR CDCV PASS
• 98562DJ (QTY: 1) | 10-20 RAPTOR BILLET UCA DJ KIT
• 95201L (QTY: 1) | 10-14 RAPTOR RXT 3.0 ZETA RR DRVR
• 95201R (QTY: 1) | 10-14 RAPTOR RXT 3.0 ZETA RR PASS
• 95120 (QTY: 1) | 10-14 RAPTOR REAR AIR BUMP KIT
• 198501 (QTY: 2) | 10-14 RAPTOR MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
• 95220H (QTY: 1) | 10-14 RAPTOR LEAF SPRING HARDWARE KIT
