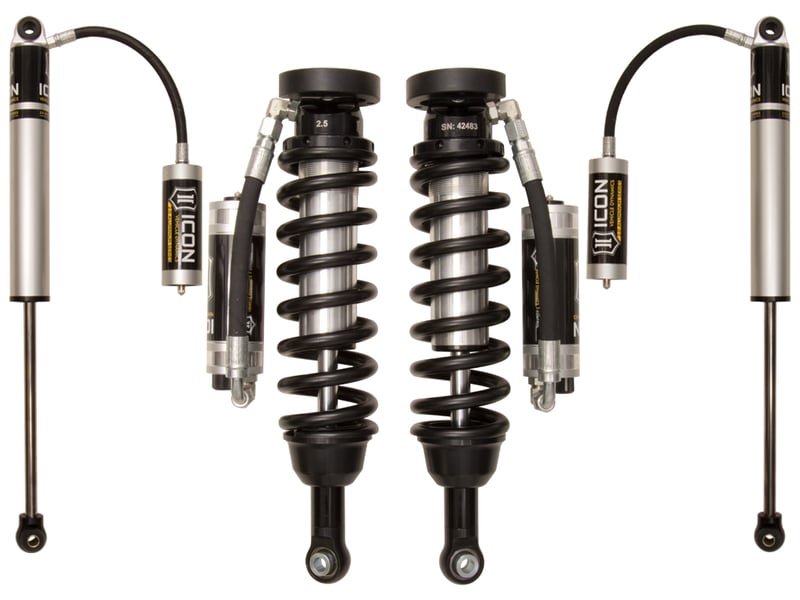

icon 11-up ranger t6 1-3" stage 3 suspension system k93103

OVERVIEW

2011-UP FORD RANGER T6 1-3" LIFT STAGE 3 SUSPENSION SYSTEM

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear remote reservoir shocks for superior shock damping and control
• ICON CDCV equipped front coilovers for fully adjustable tuneability of your shocks
• Improved shock durability for the varying terrains and many uses this vehicle faces
• Adjustable coilovers from 1-3" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 aluminum body rear shock with 5/8" shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5 with 5" Backspace
• Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in multiple boxes

System Components

• 91210C (QTY: 1) | 11-UP RANGER T6 1-3" 2.5 VS RR CDCV COILOVER KIT
• 96517R (QTY: 2) | 11-UP RANGER T6 0-2" REAR 2.0 VS RR
