icon 14-18 ram 2500 4wd 4.5" stage 2 suspension system k214522

OVERVIEW

2014-2018 DODGE RAM 2500 4WD 4.5" LIFT STAGE 2 SUSPENSION SYSTEM

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Decreased body roll
• Level stance from front to rear of vehicle
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25" Backspace / 13mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #90: MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS
• APPLICATION NOTE #103: VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFTS REQUIRE CARRIER SHIM KIT 214211
• APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
• Ships in Multiple Boxes

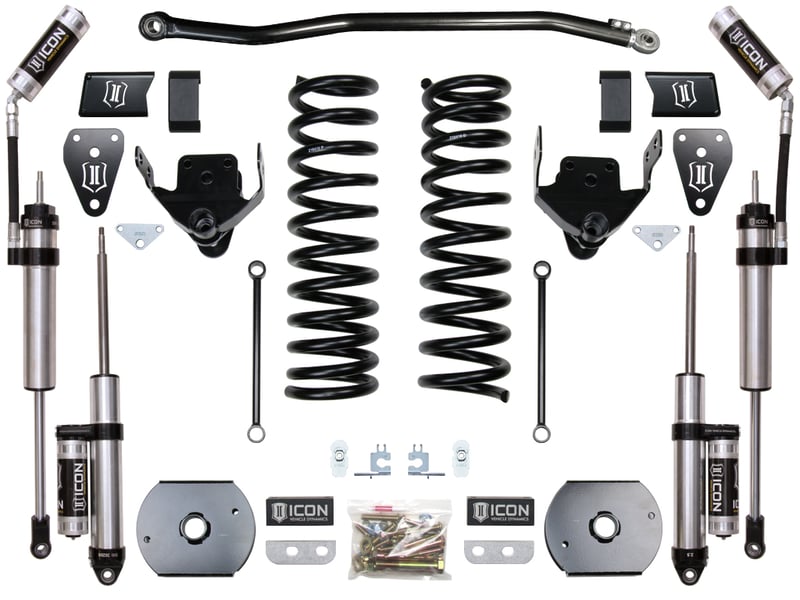

System Components

• 214201 (QTY: 1) | 14-UP RAM 2500 4.5" FRONT DUAL RATE SPRING KIT
• 214214 (QTY: 1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
• 214205 (QTY: 1) | 14-UP RAM 2500 4.5" BOX KIT
• 217803P (QTY: 1) | 14-UP RAM 2500 4.5" FRONT LIFT 2.5 VS RR PAIR
• 217707P (QTY: 1) | 14-UP RAM 2500 2" STANDARD REAR 2.5 VS PB PAIR
