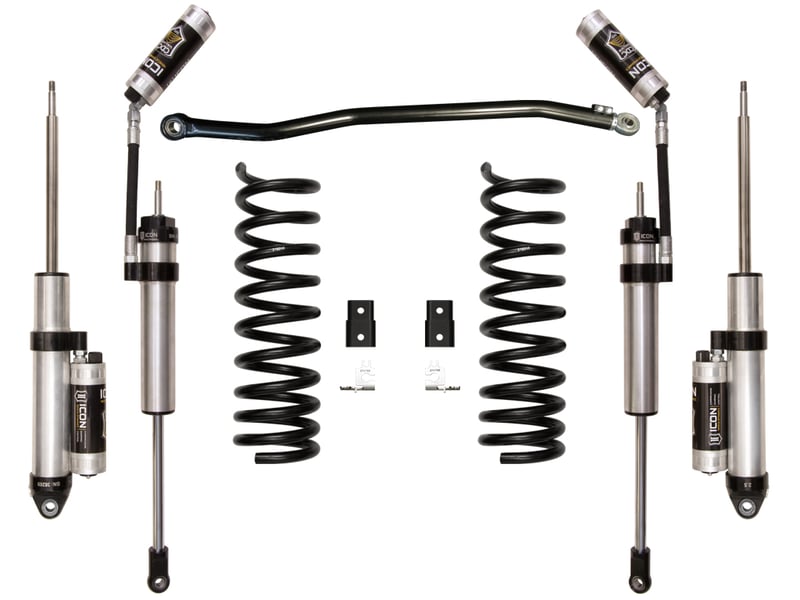

icon 14-up ram 2500 4wd 2.5" stage 4 suspension system (air ride) k212544a

OVERVIEW

2014-UP RAM 2500 4WD AIR RIDE 2.5" LIFT STAGE 4 SUSPENSION SYSTEM

Features and Benefits

• ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series reservoir shocks
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Adjustable track bar with PTFE lined FK bearings
• Less body roll than stock
• No drive shaft modifications needed
• Optional ICON 2" Air Ride Kit (Part #214212) allows for end-user adjustability of rear ride height

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25" BS / 13mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in Multiple Boxes

System Components

• 214200 (QTY: 1) | 14-UP RAM 2500 2.5" FRONT DUAL RATE SPRING KIT
• 214214 (QTY: 1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
• 217802CP (QTY: 1) | 14-UP RAM 2500 2.5" FRONT 2.5 VS RR CDCV PAIR
• 217708CP (QTY: 1) | 14-UP RAM 2500 AIR RIDE REAR 2.5 VS PB CDCV PAIR
