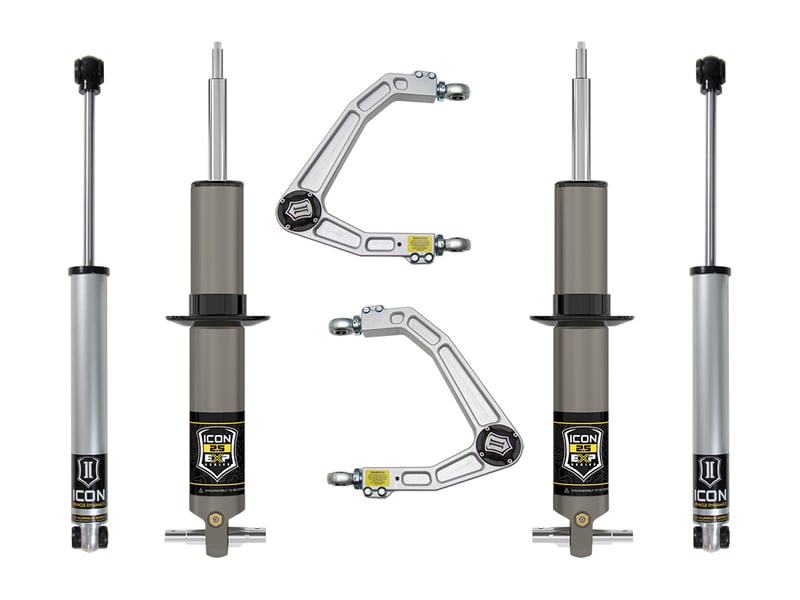

icon 19-23 gm 1500, 2.375-3.75" lift, stage 2 exp suspension system, billet k73072

OVERVIEW

Stage 2 includes a pair of 2.5 EXP Series coilovers for 2.375-3.75" of front lift, improved performance, and 35" tire fitment. Billet UCAs improve alignment and 2.0 Series rear shocks to balance the tuning from front to rear.

Features and Benefits

• Vehicle specific design for 2019-2023 GM 1500 pickups
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 2.375-3.75" of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
• 7/8" diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• CNC machined 6061 aluminum components with a black anodized finish
• All ICON shock absorbers are fully rebuildable and re-tunable

Tech Info

• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5" Backspace / 0mm Offset
• Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #83: TRIMMING OF THE UPPER CONTROL ARM STOP REQUIRED OR DOWN TRAVEL WILL BE LIMITED BY UPPER ARM STOP
• APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE.
• TECH NOTE: Not compatible with models equipped with Adaptive Ride Control (ARC)
• TECH NOTE: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
• TECH NOTE: Not compatible with Silverado 1500 TRAIL BOSS or Sierra 1500 AT4
• TECH NOTE: Models equipped with gasoline engines will have front lift height range of 2.375-3.75" over stock (lift heights vary slightly depending on trim/engine)
• TECH NOTE: Models equipped with Duramax diesel engines will have front lift height range of 1.75-3" over stock

System Components

• 71607 (QTY: 2) | 19-23 GM 1500 FRONT 2.5 EXP COILOVER
• 78720DJ (QTY: 1) | 19-24 GM 1500 BILLET UCA DJ KIT
• 76526 (QTY: 2) | 07-23 GM 1500 0-2" REAR 2.0 VS IR
