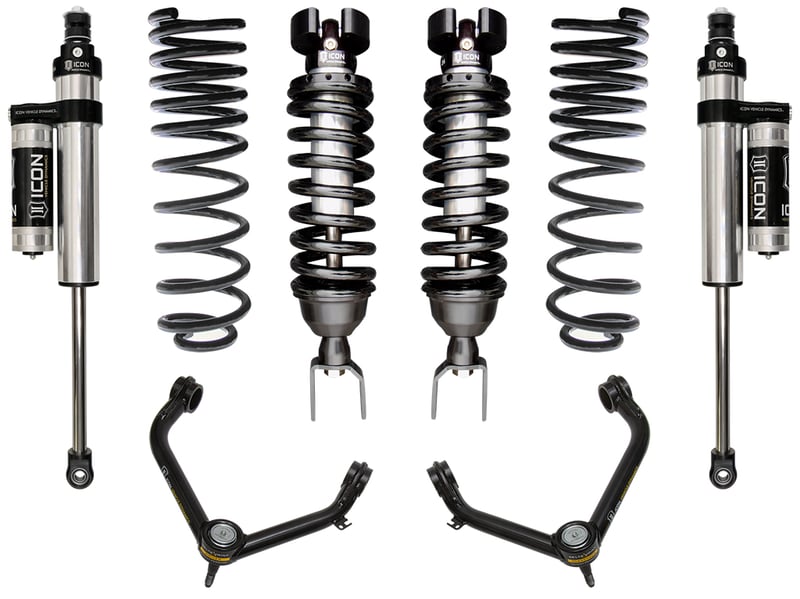

icon 19-up ram 1500 2/4wd 0-1.5" stage 4 suspension system w tubular uca k213104t

OVERVIEW

2019-UP RAM 1500 2/4WD 0-1.5" LIFT STAGE 4 SUSPENSION SYSTEM WITH TUBULAR UCA

Features and Benefits

• Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
• Shocks are fully rebuildable and revalvable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
• ICON upper control arms improve suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• 1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
• Corrosion resistant CAD plated coilover shock bodies with 7/8? shafts
• Rear 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK rod end bearings for extended longevity and minimal deflection
• Fits 2WD & 4WD applications
• 6061 Aircraft grade aluminum CNC machined components

Tech Info

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING
• APPLICATION NOTE #100: SPRINGS NOT RATED FOR ECO DIESEL EQUIPPED TRUCKS
• APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
• Ships in Multiple Boxes
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• TECH NOTE: 2019-Up Ram Rebel lift height range 0-.75" over stock (front) and 1" over stock (rear)
• TECH NOTE: Not compatible with 2019-2022 Ram 1500 Classic models
• TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX trim

System Components

• 211000 (QTY: 1) | 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT
• 218550DJ (QTY: 1) | 09-23 RAM 1500 TUBULAR UCA DJ KIT
• 212150 (QTY: 1) | 09-23 RAM 1500 REAR 1.5" DUAL RATE SPRING KIT
• 217716P (QTY: 1) | 19-23 RAM 1500 0-3" REAR 2.5 VS PB PAIR
