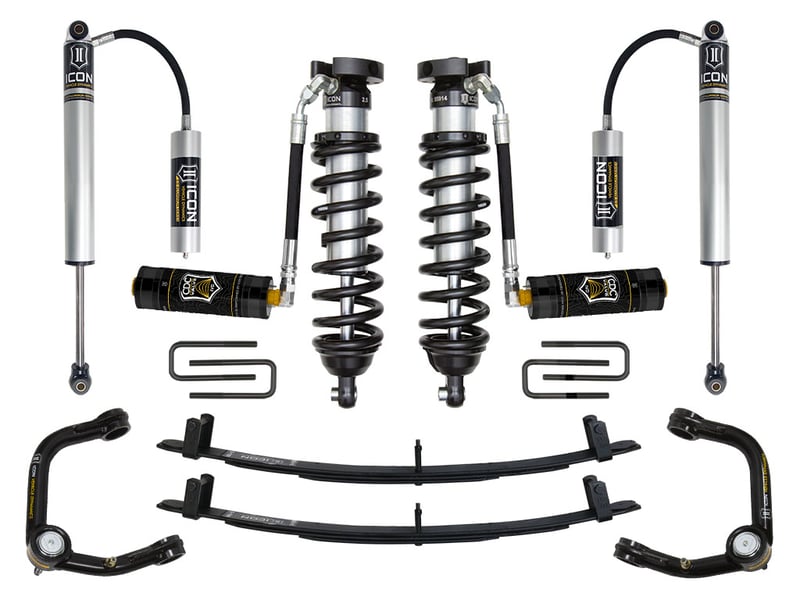

icon 1995.5-04 toyota tacoma, 0-3" lift, stage 5 suspension system, tubular uca k53015

OVERVIEW

ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.

Features and Benefits

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Front Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Adjustable coilovers provide up to 3.5" of front lift height
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
• APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
• APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs

System Components

• 58715C (QTY: 1) | 96-04 TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
• 58400DJ (QTY: 1) | 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT
• 51100 (QTY: 1) | 96-23 TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT
• 56502R (QTY: 2) | 96-04 TACOMA 4WD 0-1.5" REAR 2.0 VS RR
