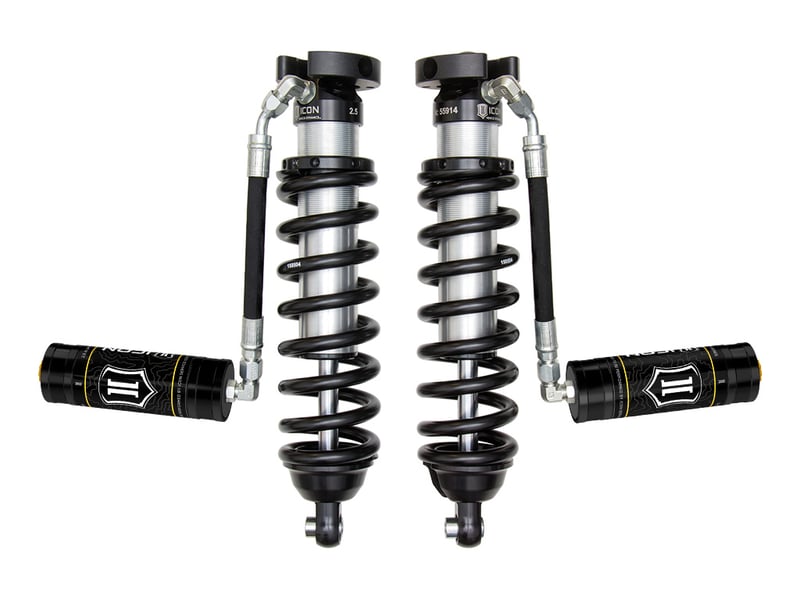

icon 1996-2004 toyota tacoma, 0-3" lift, front,v.s. 2.5 series coilover kit, extended travel, remote reservoir, 700 lbs/in spring rate 58715-700

OVERVIEW

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Features and Benefits

• Increased wheel travel over stock
• Vehicle specific tuned front shocks for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• Improved ride quality over stock on and off-road
• Height-adjustable coilovers offer 0-3" of lift height adjustment
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
• APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
• TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
