icon 20-up gladiator 2.5" stage 8 suspension system (tubular) k22108t

OVERVIEW

2020-UP JEEP GLADIATOR JT 2.5" STAGE 8 SUSPENSION SYSTEM WITH TUBULAR LINKS

Features and Benefits

• 2.5" lift height
• Fits 35" tires (37" with extended bump stop spacer kit)
• 33% front, 23% rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Front upper and lower links included for caster angle correction and improved front end articulation
• Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
• Front and rear track bars ensure proper alignment and improved articulation
• Adjustable, billet aluminum front sway bar links
• 100% bolt-on system makes for an easy install
• "ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5" Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
• APPLICATION NOTE #128: GLADIATOR MOJAVE TRIM REQUIRES 14MM MISALIGNMENT SPACER KIT PART # 611070
• APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
• TECH NOTE: ICON's advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine.
• Ships In Multiple Boxes

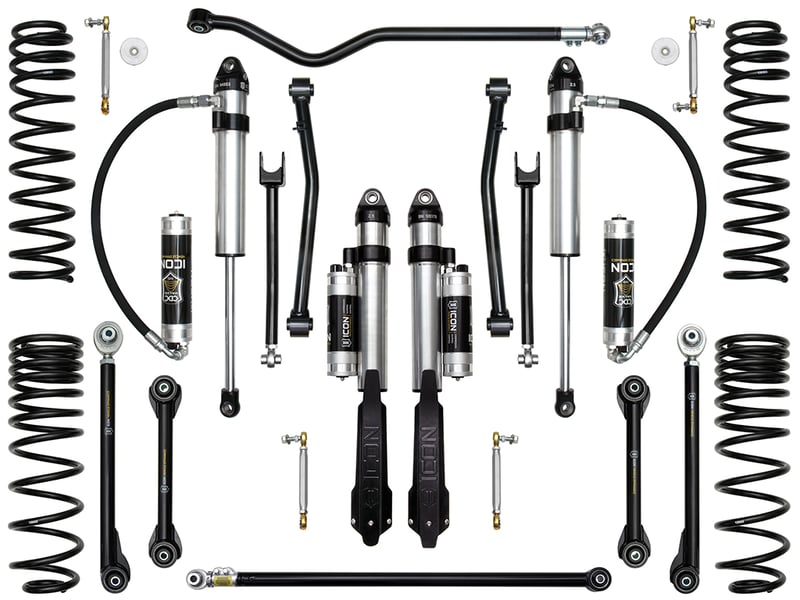

System Components

• 22021 (QTY: 1) | 18-23 JL/20-23 JT FRONT FIXED LOWER LINK KIT
• 22022 (QTY: 1) | 18-23 JL/20-23 JT FRONT ADJ UPPER LINK KIT
• 22063T (QTY: 1) | 20-23 JEEP JT/19-23 RAM 1500 TUBULAR REAR ADJUSTABLE LOWER LINK KIT
• 22064T (QTY: 1) | 20-23 JEEP JT/19-23 RAM 1500 TUBULAR REAR UPPER LINK KIT
• 22025 (QTY: 1) | 18-23 JL 2.5"/20-23 JT 2" FRONT DUAL RATE SPRING KIT
• 22066 (QTY: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
• 22061 (QTY: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
• 22070 (QTY: 1) | 20-UP JT REAR SWAY BAR LINK KIT
• 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
• 22068 (QTY: 1) | 20-23 JEEP JT/19-23 RAM 1500 REAR ADJ TRACK BAR KIT
• 27821CP (QTY: 1) | 20-23 JT/18-23 JL 2.5" FRONT 2.5 VS RR CDCV PAIR
• 27727CP (QTY: 1) | 20-23 JT 1.5" REAR 2.5 VS PB CDCV PAIR
