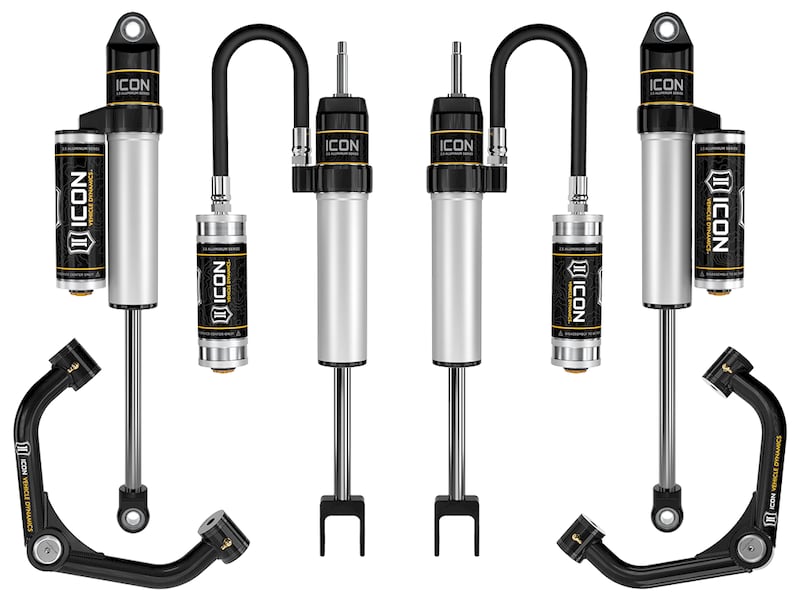

icon 20-up gm 2500hd/3500 0-2" stage 2 suspension system (tubular) k78352t

OVERVIEW

2020-UP GM 2500HD/3500 0-2" LIFT STAGE 2 SUSPENSION SYSTEM WITH TUBULAR UCA

Features and Benefits

• 0-2" Adjustable lift height over stock
• Vehicle specific tuned 2.5 Aluminum Series remote reservoir front and rear shocks for superior shock damping and control
• Improved ride quality over stock with no change in towing capacity
• Wheel travel increase of 2" over stock
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant anodized aluminum shock bodies

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.5" Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.5" Backspace / 12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #65: NOT SOLD SEPARATELY, ONLY SOLD IN COMPLETE KIT FORM AS LISTED
• APPLICATION NOTE #113: 26.13" IS MAX MEASUREMENT FROM FENDER TO HUB, EXCEEDING THE MAXIMUM LIFT HEIGHT OF 26.13" CAN LEAD TO COMPONENT FAILURE NOT COVERED BY ICON WARRANTY
• TECH NOTE: The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.

System Components

• 78734T (QTY: 1) | 20-UP GM HD 0-2" RR SHOCK SYS W/ TUBE UCA
• 77701P (QTY: 1) | 01-UP GM HD 0-1" REAR 2.5 VS PB / 07-18 GM 1500 4" REAR 2.5 VS PB PAIR
