icon 20-up gm hd 0-2" rr shock sys w/ billet uca 78734

OVERVIEW

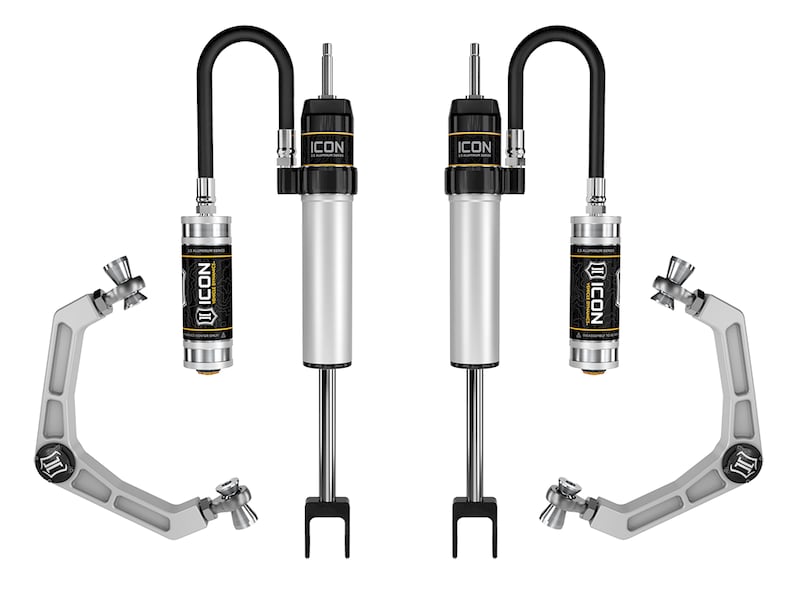

2020-UP GM HD 0-2" LIFT REMOTE RESERVOIR SHOCK SYSTEM WITH BILLET UCA

Features and Benefits

• Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• PTFE Lined 7/8" FK Rod Ends for improved response
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Nitrogen charged monotube design with remote reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Built in o-ring sealed dust cover cap
• Vehicle specific taper pin provides OE-like fitment
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 7/8" diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Additional camber and caster adjustability allows for precise wheel alignment

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.5" Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.5" Backspace / 12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• TECH NOTE: The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.
