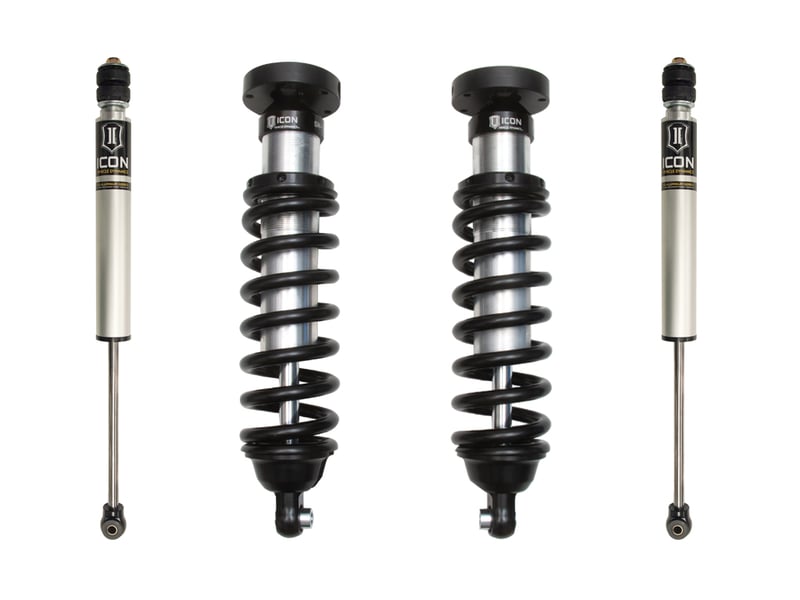

icon 2000-2006 toyota tundra, 0-2.5" lift, stage 1 suspension system k53031

OVERVIEW

ICON Toyota Tundra Stage 1 suspension systems are designed with maximum performance in mind. Their primary focus is to increase wheel travel and damping ability, translating into outstanding vehicle control and ride quality on and off-road.

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from 0-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 VS Aluminum Series with 5/8" polished chrome shafts
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

System Components

• 58620 (QTY: 1) | 00-06 TUNDRA/01-07 SEQUOIA 2.5 VS IR COILOVER KIT
• 56504 (QTY: 2) | 00-06 TUNDRA 0-1.5" REAR 2.0 VS NR
