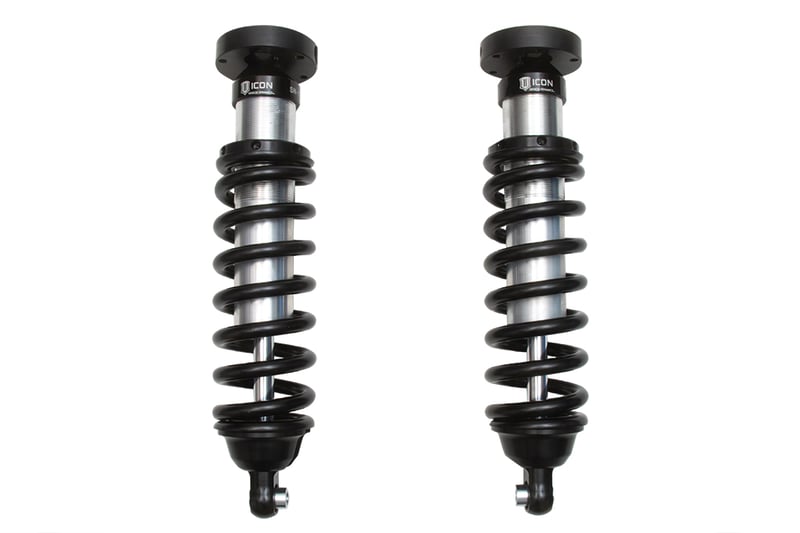

icon 2000-2006 toyota tundra/2001-2007 toyota sequoia, v.s. 2.5 series coilover kit, internal reservoir, 700 lb/in coils 58620-700

OVERVIEW

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride quality across varying types of terrain.

Features and Benefits

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with stock front upper control arms yield increased wheel travel
• Height-adjustable coilovers offer 0-2.5" of lift height adjustment over stock
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• 2.5" diameter shock bodies with internal reservoirs for consistent performance
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
• TECH NOTE: These "Standard Travel" length coilovers are optimized for use with stock front upper control arms. If using aftermarket front upper control arms with high angle ball joints, consider "Extended Travel" versions, ICON part number 58625-700.
