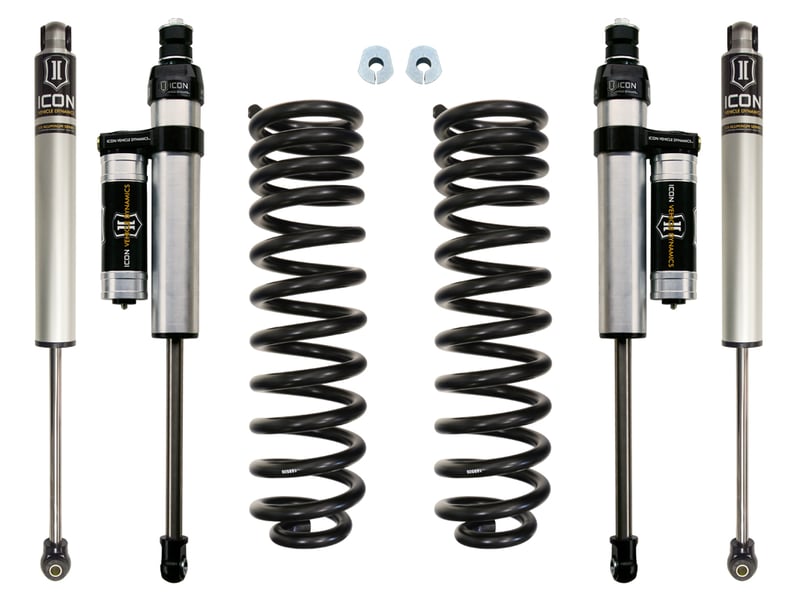

icon 2005-2016 ford f-250/f-350 super duty 4wd diesel, 2.5" lift, stage 2 suspension system k62501

OVERVIEW

ICON 2.5" suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you'll have the best suspension solution on the market.

Features and Benefits

• ICON engineered dual rate coil springs with match tuned performance shocks
• Application Specific Alignment Cams ensure proper Caster alignment
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that coil springs won't sag
• No drive shaft modifications required
• 100% Bolt-on system - no drilling, cutting or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• TECH NOTE: Compatible with 4WD models only
• TECH NOTE: 2005-2016 F-250s require 4" rear blocks with 15" U-bolt kit to sit level with 2.5" lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
• TECH NOTE: Not compatible with F-350 Cab & Chassis models
• TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry on 2008-2016 models
• TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock

System Components

• 62510 (QTY: 1) | 05-19 FSD FRONT 2.5" DUAL RATE SPRING KIT
• 67700P (QTY: 1) | 05-24 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• 36508 (QTY: 2) | 99-16 FSD 4WD 3-6" REAR 2.0 VS IR
