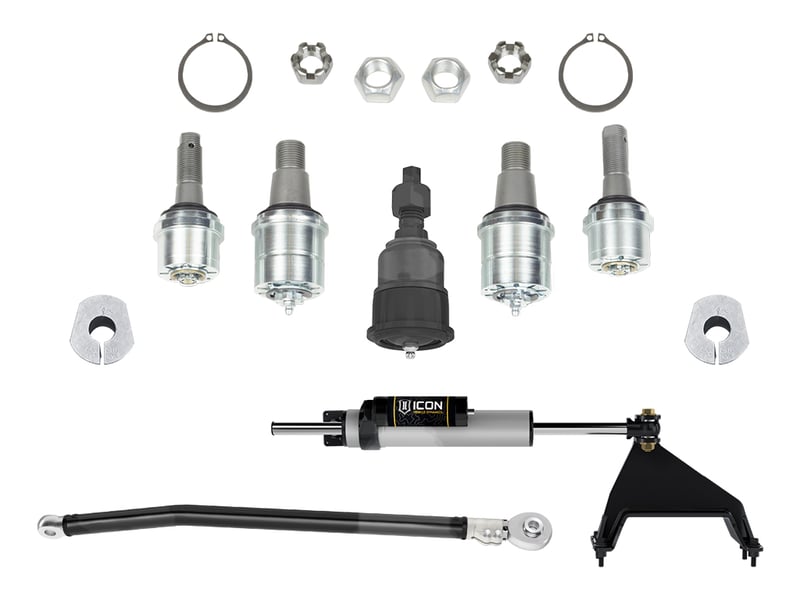

icon 2005-2016 ford f-250/f-350 super duty 4wd, ultimate front end kit, stage 6 k6216

OVERVIEW

The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components.

Features and Benefits

• Full set of genuine Dynatrac front upper and lower ball joints
• Improves steering feel and vehicle control
• CNC machined, high-strength components
• Heat-treated, high-strength billet bodies with chromoly stems
• Heat-treated, precision-ground stainless-steel ball
• Sealed, greaseable design and PTFE coated wear points ensure long service life
• On-vehicle rebuildable design
• Adjustable track bar helps to free up bind during front suspension travel and articulation
• Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
• On-vehicle adjustable track bar for precise track alignment using ICON's double adjuster
• CNC machined and bent 1.625" X .250" wall 1026 DOM tubing
• Through shaft steering stabilizer design eliminates the push/pull sensation associated with traditional stabilizers
• Provides symmetrical steering feel throughout input range
• Drastically increased steering damping over stock unit
• Offers increased wheel travel compared to ICON's dual steering stabilizer kit
• Fully rebuildable ICON Vehicle Dynamics 2.5 Series shock
• Piggyback reservoir design
• 6061 hard anodized aluminum shock body provides excellent corrosion resistance
• Track bar ball joint is a direct press in replacement for OE axle or ICON track bars
• Greaseable design ensures long service life
• Sealed dust boot prevents contamination
• Improved strength and rigidity over OEM track bar ball joint
• Alignment cams add 2.3° of caster and .5° of camber over stock
• Ensures proper front-end alignment when installed in conjunction with compatible suspension lifts
• Zinc plated cams for corrosion resistance
• Includes new ball joint cotter pins

Tech Info

• TECH NOTE: Fits 2005-2016 Ford F-250/F-350 4WD
• TECH NOTE: Alignment cams are optimized for vehicles with 2-3" of front lift. Not recommended for stock height vehicles.
• TECH NOTE: Will not fit axles equipped with RCV axle shafts
• TECH NOTE: Will not fit F-350 dually models equipped with Wide Track front axle
• TECH NOTE: Steering stabilizer bracket mounts over stock front differential cover, not compatible with most aftermarket covers.
• TECH NOTE: Not compatible with aftermarket tie rods
• TECH NOTE: ICON track bar bracket part # 64039 is also recommended for 2008-2022 models to correct bump steer geometry
• TECH NOTE: Track bar ball joint presses into OE front axle on 2005-2016 F-250/F-350. Compatible with OE or aftermarket track bars.

System Components

• 65052 (QTY: 1) | 05-22 FSD 2.5 PB CENTERLINE STABILIZER KIT
• 62530 (QTY: 1) | 05-23 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
• 614528 (QTY: 1) | 05-24 FSD TRACK BAR BALL JOINT SERVICE KIT
• 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
• DA60-2X3050-A (QTY: 1) | #N/A
