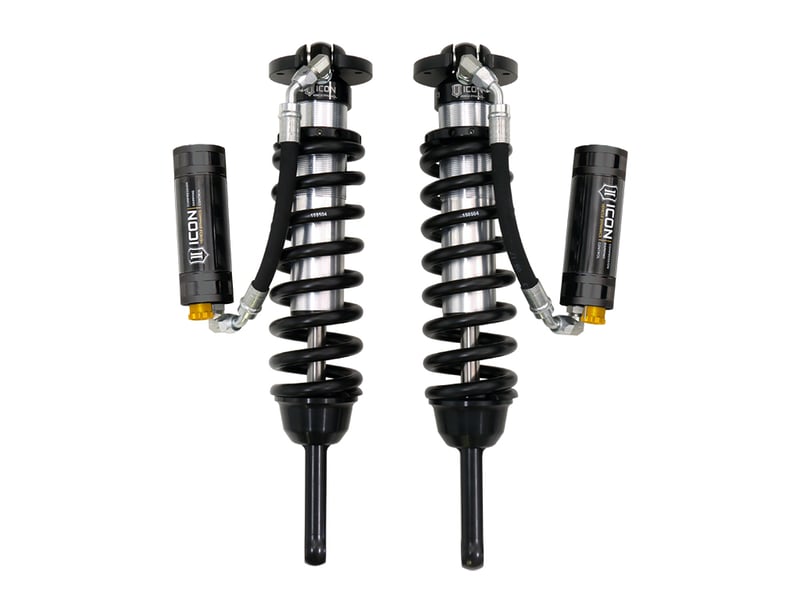

icon 2005-2023 toyota tacoma, 2.5 vs extended travel, remote reservoir w/ cdcv coilover kit, 700 lbs/in coils 58735c-700

OVERVIEW

These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON's CDCV which offers 10 points of adjustability.

Features and Benefits

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Vehicle specific tuned for superior shock damping and control
• Extended Travel length requires installation of aftermarket front upper control arms
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• CAD-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearings
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75"
• APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
• APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25" Beyond Maximum
• TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
• TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
• TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
• TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
