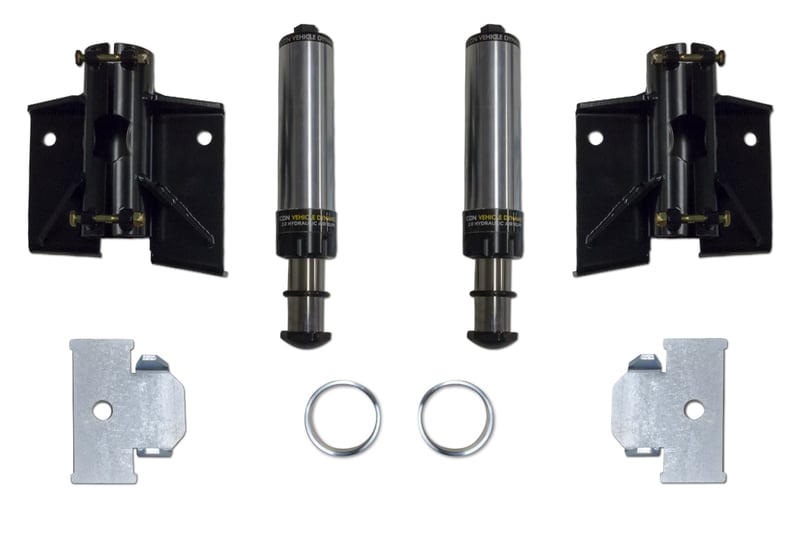

icon 2005-2023 toyota tacoma rear hydraulic bump stop kit 56103

OVERVIEW

This vehicle specific tuned hydraulic bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return. The compression and rebound tuned bumpstop is smooth, not abrupt or harsh like the OE bumpstop.

Features and Benefits

• Bolt-on design using existing holes in frame for clean install with no cutting or welding
• Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
• Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
• Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
• Can be returned to stock
• Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
• Anodized billet top cap, o-ring sealed back up cap, seal head and striker
• CAD Plated body for corrosion free service
• Urethane rod seal and wiper for long service life
• User serviceable

Tech Info

• TECH NOTE: Not compatible with 2005-2015 5-lug RWD Tacoma models
