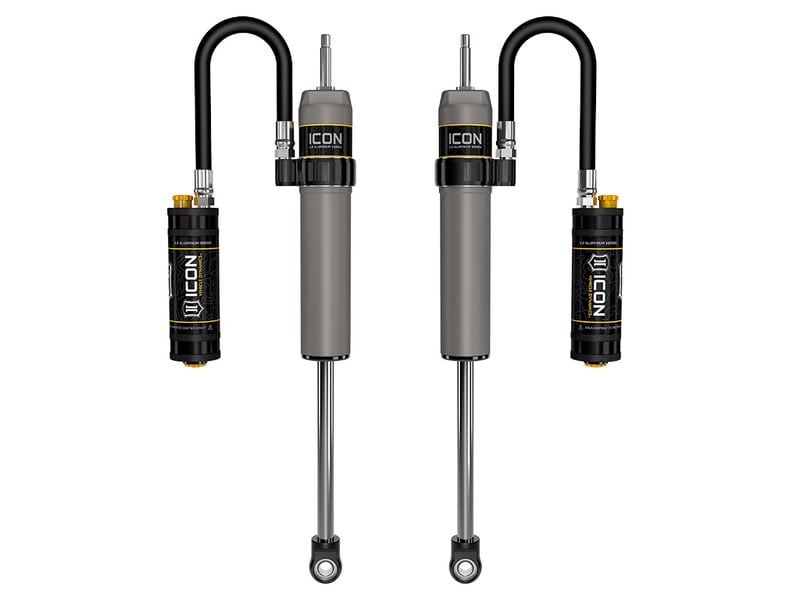

icon 2005-2024 ford super duty 4wd, 0-2.5" lift, front, v.s. 2.5 aluminum series shock absorbers, remote reservoir w/ cdcv, pair 67800cp

OVERVIEW

ICON 2.5 Series shocks are designed to give you outstanding performance off-road and a smooth ride on the street. With a vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.

Features and Benefits

• Nitrogen charged monotube design with remote reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• 6061 aircraft grade aluminum CNC machined components
• 7/8" diameter induction hardened, chrome plated shock shaft
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• PTFE lined spherical bearings and application specific mounting hardware
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• 100% Revalveable
• 100% Rebuildable

Tech Info

• TECH NOTE: Compatible with 0-3" of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD
• TECH NOTE: Compatible with 0-3.75" of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
• TECH NOTE: Compatible with 0-2.75" of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
• TECH NOTE: Compatible with 0-3" of front lift over stock of 2023-2024 F-250/F-350 4WD without Tremor package
• TECH NOTE: Compatible with 0-2" of front lift over stock of 2023-2024 F-250/F-350 4WD equipped with Tremor package
• TECH NOTE: Compatible with 0-3.75" of front lift over stock of 2020-2022 F-450 4WD
• TECH NOTE: Compatible with 0-3" of front lift over stock of 2023-2024 F-450 4WD
• TECH NOTE: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions
• TECH NOTE: Also requires Reservoir Doubler Kit part number 611003 if installing as secondary shock along with ICON front coilover conversion
