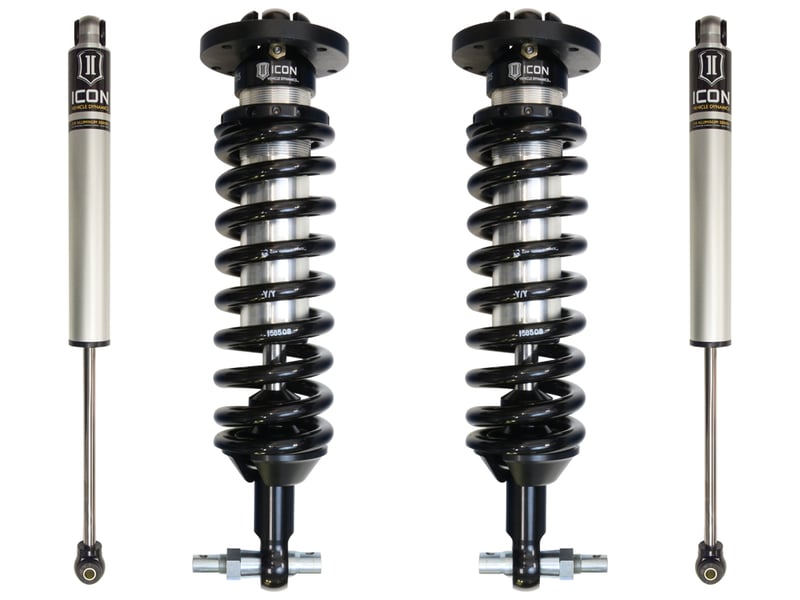

icon 2007-2016 gm 1500, 1-3" lift, stage 1 suspension system k73001

OVERVIEW

2007-2018 GM 1500 1-3" LIFT STAGE 1 SUSPENSION SYSTEM

Features and Benefits

• Fits 2WD and 4WD models
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers allow for f 1-3" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #48: SLIGHT MODIFICATIONS TO FACTORY SHOCK MOUNTS MAY BE REQUIRED
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #83: TRIMMING OF THE UPPER CONTROL ARM STOP REQUIRED OR DOWN TRAVEL WILL BE LIMITED BY UPPER ARM STOP
• TECH NOTE: Not compatible with models equipped Magnetic Ride Control
• TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift on most models
• TECH NOTE: Not recommended for Hybrid models
• Ships in multiple boxes

System Components

• 71505 (QTY: 1) | 07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT
• 76526 (QTY: 2) | 07-23 GM 1500 0-2" REAR 2.0 VS IR
