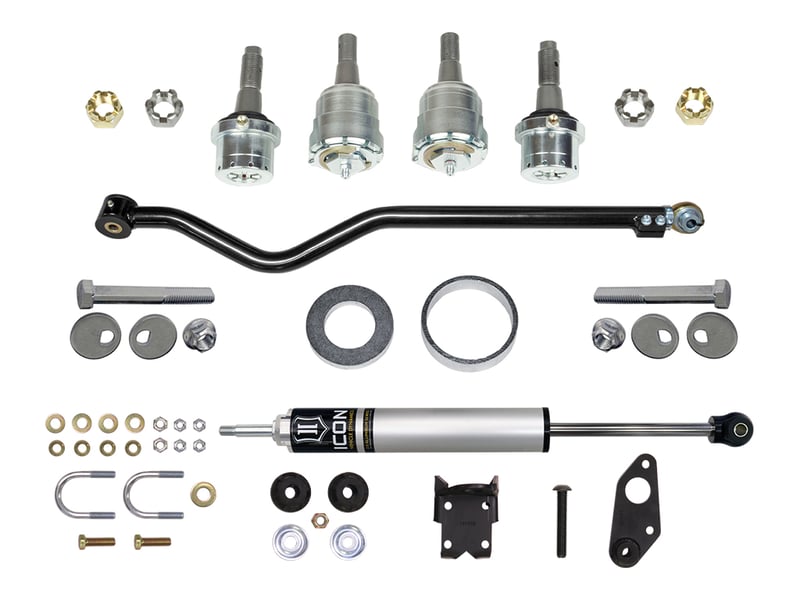

icon 2007-2018 jeep wrangler jk, ultimate front end kit, stage 4 k2204

OVERVIEW

The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components.

Features and Benefits

• Full set of genuine Dynatrac front upper and lower ball joints
• Improves steering feel and vehicle control
• CNC machined, high-strength components
• Heat-treated, high-strength billet bodies with chromoly stems
• Heat-treated, precision-ground stainless-steel ball
• Sealed, greaseable design and PTFE coated wear points ensure long service life
• Snap ring prevents unwanted movement in axle housing
• On-vehicle rebuildable design
• Increased steering damping ability over stock
• High-clearance stabilizer bracket design reduces risk of damage
• 2.0 Aluminum Series rebuildable steering stabilizer shock
• Corrosion-resistant aluminum shock body with 5/8" shaft
• On vehicle adjustable track bar for precise track alignment using ICON's Double Adjuster
• Maintenance free, multi-durometer bushing and JM12T rod end minimize track bar deflection while maximizing responsiveness
• Track bar constructed with CNC machined and bent 1 1/4" x .250 wall 1026 seamless DOM tubing
• Alignment cams add caster adjustment to ensure accurate front end alignment
• +/- 1.5 Degree caster angle adjustability
• Cam bolts are made of heavy-duty alloy steel.

Tech Info

• TECH NOTE: Fits 2007-2018 Jeep Wrangler JK with OE or Dynatrac ProRock 44 front axles
• TECH NOTE: Steering stabilizer only fits models equipped with 1.375" diameter tie rod
• TECH NOTE: Requires a minimum of 1" tall bump stop spacer (ICON part number 22044 recomended) unless suspension system already includes 1" or taller front bump stop spacers

System Components

• 22013 (QTY: 1) | 07-18 JK CASTER CAM KIT
• 21020 (QTY: 1) | 07-18 JK FRONT ADJ TRACK BAR KIT
• 22018 (QTY: 1) | 07-18 JK HIGH-CLEARANCE STABILIZER KIT
• JP44-2X3050-C (QTY: 1) | #N/A
