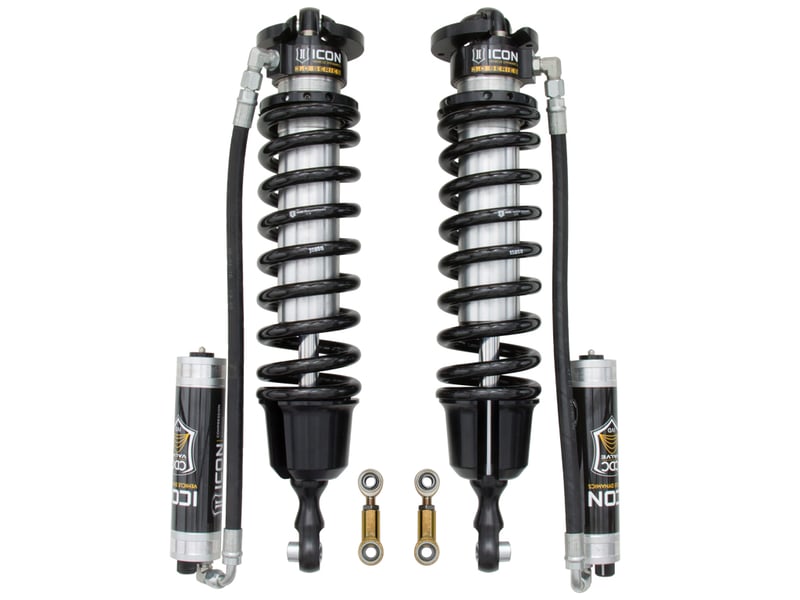

icon 2007-2021 toyota tundra/2008-2022 toyota sequoia, v.s. 3.0 series coilover kit, remote reservoir w/ cdcv 58755

OVERVIEW

These ICON coilovers feature 3.0 Series shocks and coil springs optimized for this application. The shock's larger 3.0" body and increased piston area improves damping ability and ride quality across varying types of terrain.

Features and Benefits

• Significant increase in damping ability for excellent performance in extreme off-road conditions
• Adjustable coilovers provide 1.63-3.5" of front lift height over stock
• Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
• ICON's multi-stage, tunable hydraulic "Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• 10" aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
• High quality ICON-engineered coil springs offer increased travel and performance
• PTFE lined COM12 spherical bearings ensure maximum strength and durability
• Heavy duty 1" CNC machined shock shafts
• Multi stage CAD plated shock body with hard anodized piston and top cap
• Direct bolt-in to OEM shock location makes for an easy install
• Fully serviceable
• "ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms ONLY
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #110: Trimming required for recommended tire size
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
